DFI industrial mini PC features AMD Ryzen Embedded R1000 processor

Apr 18, 2022 — by Giorgio Mendoza 344 views

The EC90A-GH is a compact sized computer that is designed to function as a secured AI edge computing and IoT platform. According to DFI, the device is very simple to set up and is robust enough to operate 24/7. The company plans to target commercial applications such as kiosks, smart buildings, digital signage and even arcades.

DFi’s mini PC integrates their own 1.8″ GHF51 board which is based on the AMD Ryzen embedded R1000 series processor. The AMD Ryzen R1000 is a dual multi-threaded core processor( up to 3.5GHz) that features 3 Vega Graphics CUs powerful enough to handle 4K displays. Additionally, the mini PC is equipped with 1x DDR4 2400MHz SODIMM memory onboard (4GB – 8GB)

— ADVERTISEMENT —

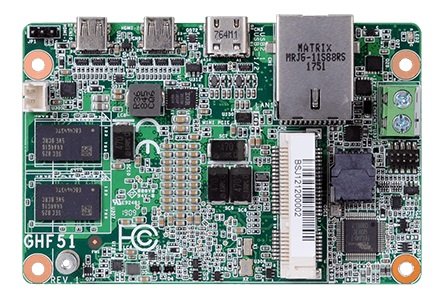

GHF51 Single Board Computer
(click images to enlarge)


The board ships with a customizable eMMC (16/32/64/128GB) and ethernet support by default (1x GbE). The board also offers two combo ports that consist of 1x-bit DIO + 1x SMBus or 2x RS-232. There is also a board upgrade to provide support for LTE and WiFi only if the first combo is selected.

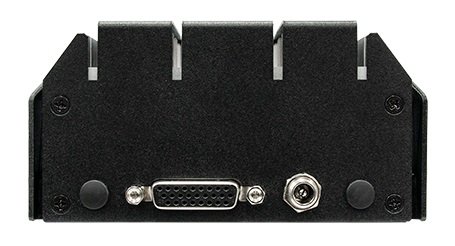

EC90AGH mini PC front (left) and back (right)
(click images to enlarge)


The device comes in a tiny size (112.29 x 80 x 56.2mm); its aluminum chassis and fanless design allows it to be incorporated in constrained spaces with limited airflow. Another useful feature for smart-retail applications is its RS232 interface for NFC reader expansions. Other common interfaces included are 1x USB 3.2 (type C), 1x Mini-PCIe and an optional 1x x I211AT PCIe.

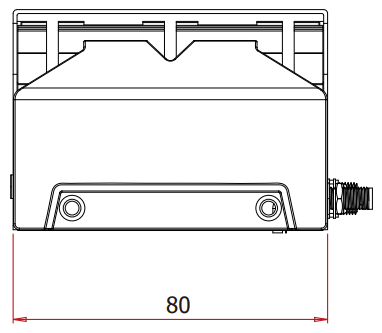

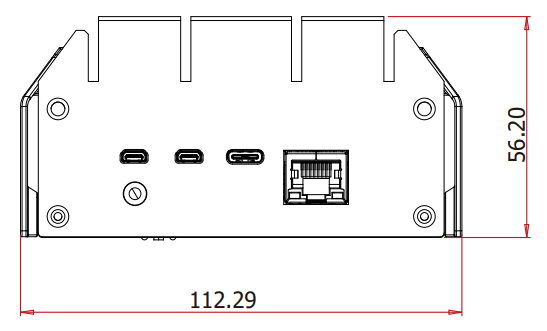

EC90A-GH mini PC front view (left) and side view (right)
(click images to enlarge)


The two main operating systems officially supported by the EC90A-GH are Windows 10 IoT Enterprise (64-bit) and Ubuntu for IoT. DFI ensures product availability for up to 10 years which includes system upgrades.

Specifications for the EC90A-GH mini PC include:

  • Processor System:
    • AMD Ryzen R1606G, Dual Core, 1MB Cache 2.6GHz (3.5GHz), 12W
    • AMD Ryzen R1505G, Dual Core, 1MB Cache 2.4GHz (3.3GHz), 12W
    • AMD Ryzen R1305G, Dual Core 1.5GHz (2.8GHz), 8-10W
    • AMD Ryzen R1102G, Dual Core 1.2GHz (2.6GHz), 6W
  • BIOS:
    • AMI SPI 64-bit
  • Memory/storage:
    • 1x DDR4 2400 MHz SODIMM up to 4GB/8GB (memory onboard)
    • 1x eMMC up to 16/32/64/128GB
  • Graphics/Display:
    • AMD Vega GPU (up to 3 computing units)
    • H.265 decode/encode support VP9 decode
    • 2 x Micro HDMI 1.4 up to 4096 x 2160 @ 24Hz
  • Connectivity:
    • 1 x GbE
    • 2 x Antenna (LTE or WiFi, via module) or 2 x RS-232
  • Expansion Slot:
    • 1 x Mini-PCIe (PCIe signal)
  • I/O:
    • USB 1 x USB 3.1 Gen2 type C
    • 1 x 8-bit DIO +1 x SMBus or  2 x RS-232
  • OS Support:
    • Windows 10 IoT Enterprise 64-bit
    • Ubuntu for IoT Linux
  • Other features:
    •  fTPM 2.0 onboard IC and Watchdog timer (1-255 seconds)
    • CE and FCC Class certified
  • Power:
    • 12V DC Jack w/ lock
  • Operating temperature
    • -20 to 45°C
  • Dimensions:
    • 112.29 x 80 x 56.20mm (VESA mounting compliant)

Further information

The price for the EC90A-GH starts at $577 according to DFI’s website. Prices vary due to the eMMC capacity and combo ports selected. Shipping seems to be free for the US but the power adapter is an additional $15.  Refer to DFI-America e-store for more info.
