DFRobot has officially introduced the FireBeetle 2 ESP32-P4, a compact microcontroller board built for computer vision and multimedia projects. Priced at $11.90, it pairs the ESP32-P4 SoC with a companion co-processor for Wi-Fi 6 and Bluetooth connectivity, targeting applications such as cameras, smart home devices, and interactive interfaces.

The ESP32-P4 includes a 360 MHz dual-core RISC-V processor with single-precision FPU and AI instruction extensions, enabling lightweight machine learning models such as TensorFlow Lite to run directly on the device.

A secondary 40 MHz RISC-V low-power core supports background and standby functions. The board is paired with 32 MB PSRAM and 16 MB Flash, along with dedicated memory blocks for both high-performance and low-power tasks.

ESp32-P4 Block Diagram
(click image to enlarge)

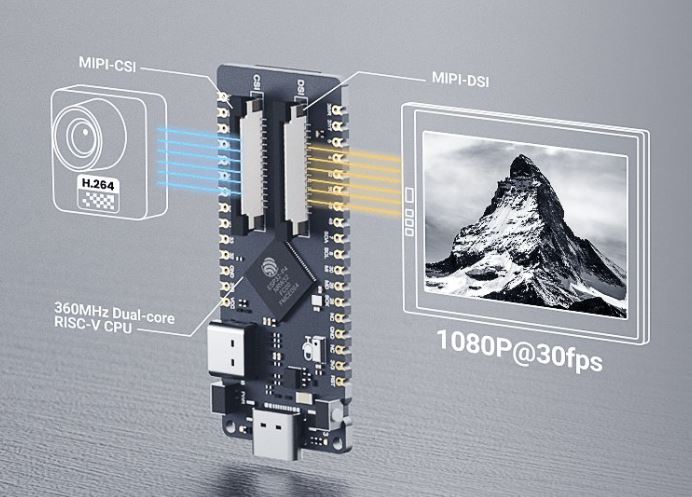

The FireBeetle 2 is advertised to be optimized for multimedia and AI workloads with native MIPI-CSI and MIPI-DSI interfaces, allowing direct connection to Raspberry Pi-compatible cameras and displays without additional adapters.

A built-in image signal processor, JPEG/H.264 encoders, and pixel accelerators enable video capture and playback at up to 1080p@30fps or 720p@88fps. An onboard PDM digital microphone adds support for voice-driven features and audio AI.

Firebeetle ESp32-P4 Peripherals
(click image to enlarge)

Despite its compact 25.4 × 60 mm footprint, the board integrates a MicroSD card slot for local storage, a USB 2.0 OTG (Type-C) port for programming and high-speed data transfer, and 24 digital I/O pins with multiple UART, I²C, SPI, and I²S interfaces for external peripherals.

Firebeetle 2 ESP32-P4
(click image to enlarge)

Wireless connectivity is powered by an onboard ESP32-C6 co-processor, bringing support for Wi-Fi 6 and Bluetooth 5 LE. This ensures higher throughput, reduced latency, and stable connections for AIoT deployments in dense network environments.

Specifications listed for the FireBeetle 2 ESP32-P4:

• Processor & Memory:
  • RISC-V dual-core @ 360 MHz + single-core @ 40 MHz
  • 32 MB PSRAM, 16 MB Flash, 768 KB L2 cache
  • MicroSD card slot
• Multimedia:
  • MIPI-DSI & MIPI-CSI (Raspberry Pi–compatible)
  • JPEG & H.264 hardware acceleration
  • Onboard PDM microphone
• Connectivity:
  • Wi-Fi 6 (2.4 GHz), Bluetooth 5 (LE)
• I/O Interfaces:
  • 24× Digital I/O
  • 5× UART, 2× I²C, 1× I3C, 2× SPI, 3× I²S
  • ADC, PWM, IR transceiver, and touch interfaces
• USB:
  • USB 2.0 OTG (Type-C, up to 480 Mbps)
• Power:
  • Operating voltage: 3.3 V
  • Power input: 5 V via USB Type-C or VIN
• Operating temperature:
  • −10 °C to +60 °C
• Mechanical:
  • Dimensions: 25.4 × 60 mm

Further Information

The FireBeetle 2 ESP32-P4 is available now from DFRobot for $11.90. A Development Kit bundle, which adds an I/O Expansion Board, is priced at $13.90.
