The NanoCluster is a compact computing platform designed for multi-SOM configurations, offering a balance between size and functionality. It supports up to seven system-on-modules, including the LM3H, CM4, CM5, and M4N, making it adaptable for various applications requiring distributed computing.

With dimensions of 85x56mm, the board is significantly smaller than a standard mini-ITX board, occupying only one-sixth of its size. Despite its small form factor, it integrates an embedded RISC-V Gigabit Ethernet switch, providing network capabilities with OpenSDK support. Its networking capabilities include ACL, SVL, VLAN, and QoS, which support efficient data management in various applications.

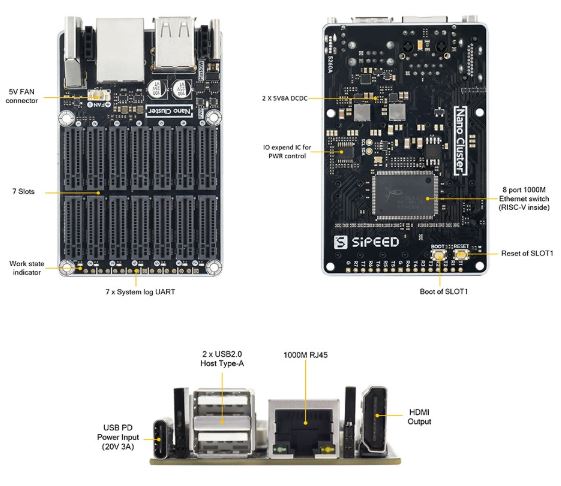

NanoCluster Features(click image to enlarge)
Storage configurations vary depending on the SOM used. The LM3H module includes eMMC storage, while the CM4 and CM5 variants support TF/eMMC along with SSD options. The M4N module includes both eMMC and SSD storage, allowing flexibility in data management.

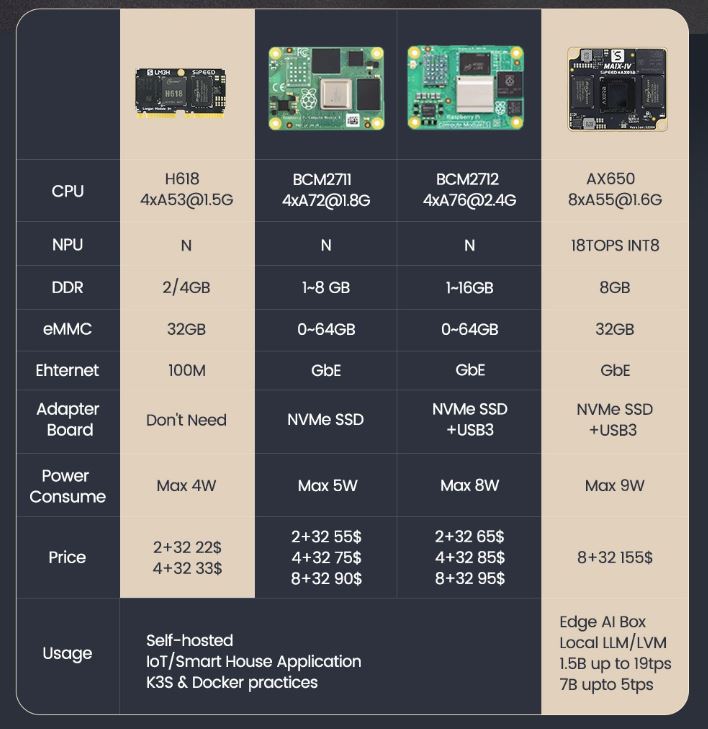

Compute Modules Comparison(click image to enlarge)
A dedicated slot is reserved for a baseboard management controller, with additional control available through power and UART interfaces. However, UART functionality requires an extended board for operation.

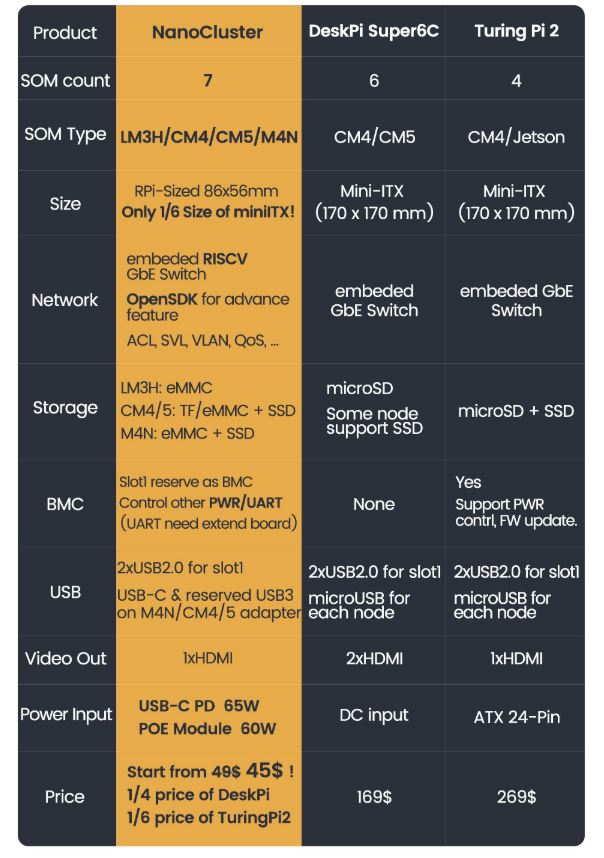

NanoCluster Comparison(click image to enlarge)
Connectivity options include two USB 2.0 ports allocated for the primary slot, while USB-C connectivity is accessible through an adapter for the M4N, CM4, and CM5 modules. A single HDMI output is available for display support.

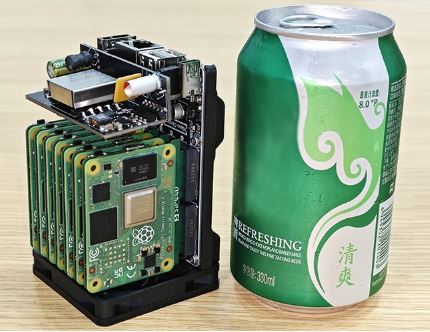

NanoCluster Size Comparison(click image to enlarge)The board operates using USB-C Power Delivery or a PoE module, with a maximum power consumption of 60W. The Sipeed Wiki page does not appear to be available as of the publication date.

Further Information

The NanoCluster will be available at a starting price of $39. According to Sipeed’s social media account, the board will be available for ordering starting next week.

(Update 4/11/2025): Sipeed has officially opened preorders for the NanoCluster platform with discounted pricing available during the preorder period. The NanoCluster Basic Package is listed at $45 (regular price $49), offering the essential dock board and cooling system.

The CM45 Package, which supports seven Raspberry Pi CM4/CM5 modules (not included), is priced at $89 (regular $99). The 7xLM3H Package, which includes seven LM3H SOMs with 4GB RAM and 32GB eMMC each, is available for $259 (regular $279).

For more advanced workloads, the 4xM4N Package—equipped with four M4N SOMs (8GB DDR + 32GB eMMC)—is available for $649 (regular $699). Optional accessories include power adapters, UART expansion, and individual SOMs, such as the LM3H (4GB+32GB) for $33 and the M4N (8GB+32GB with adapter) for $164.
