The UP Squared Pro 710H developer board is designed for AI and edge computing, featuring Intel Atom x7000RE, Intel Processor N Series, and Intel Core i3-N305 processors for flexible performance. It efficiently handles real-time, intensive tasks, addressing the demands of applications such as industrial IoT, smart cities, and autonomous systems.

This AAEON developer board can be configured with various Intel processors, similar to the ODROID-H4 released earlier this year.

• N97 — 4C, (2.0 – 3.6 GHz); 6 MB Cache, 12W TDP, Intel UHD Graphics (up to 1.20 GHz), 24 Execution Units
• Core i3-N305 — 8C/8T, (1.8 – 3.8 GHz); 6 MB Smart Cache, 15W TDP, 32 EU, Intel UHD Graphics (up to 1.25 GHz), 32 Execution Units

The Hailo-8 edge AI processor significantly enhances the board’s ability to handle AI workloads, delivering up to 26 TOPS of performance. This allows for low-latency inferences, ideal for edge-based AI applications without reliance on cloud services.

Hardware specifications include up to 16GB of LPDDR5 memory and 128GB of eMMC storage, supporting complex AI models and data processing tasks. The dual 2.5GbE Ethernet ports, USB 3.2, and a 40-pin GPIO header ensure versatile connectivity.

The UP Squared Pro 710H offers flexible expansion with M.2 B, E, and M-Key slots, supporting 5G, Wi-Fi, and NVMe storage, respectively.

Multiple display interfaces, such as HDMI 2.0b and DP 1.4, make it well-suited for industrial and AI-driven use cases. A 40-pin Raspberry Pi-compatible header supports peripherals like I2C, SPI, UART, and GPIO, expanding its versatility for various projects.

Security is a key focus, with onboard TPM 2.0 ensuring data integrity for sensitive applications. The UP Squared Pro 710H supports operating systems such as Windows 10 IoT Enterprise, Ubuntu 22.04 LTS, and Yocto 4.0, providing flexibility in software environments.

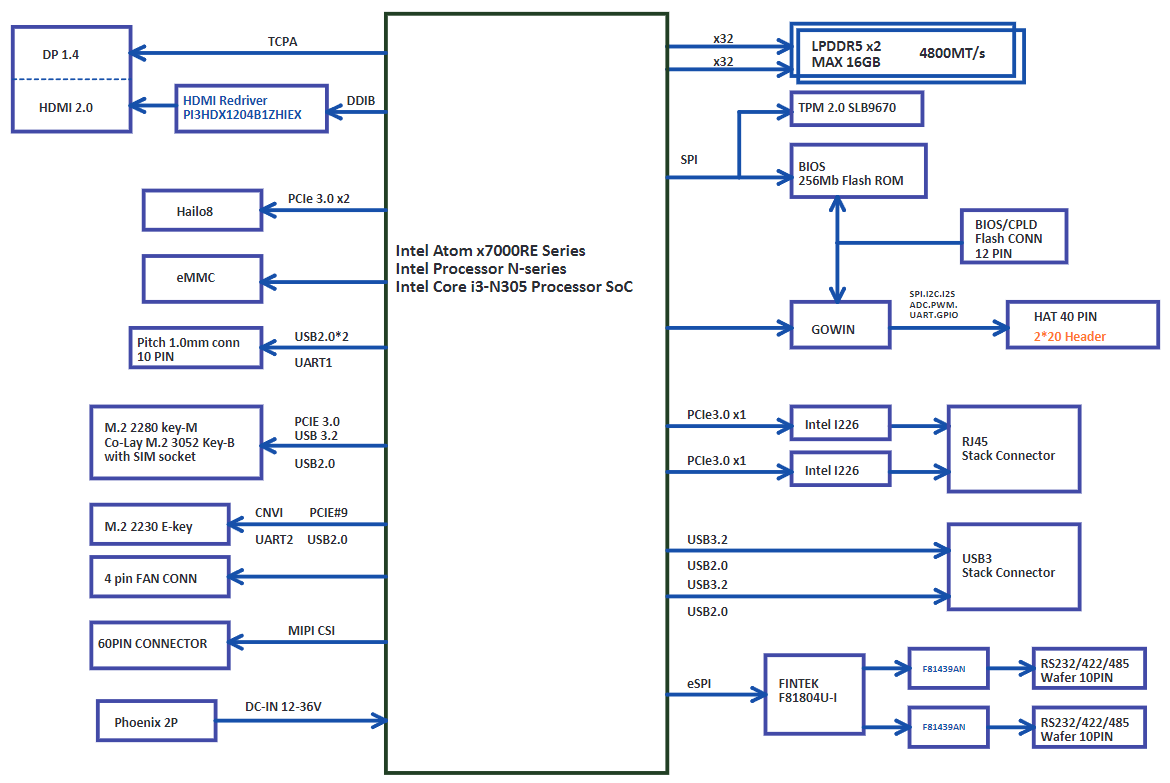

Specifications listed for the UP Squared Pro 710H include:

• Memory/Storage:
  • Up to 16GB onboard LPDDR5
  • Up to 128GB onboard eMMC
• Display:
  • 1x HDMI 2.0b
  • 1x DP 1.4
• Camera:
  • MIPI-CSI
• Connectivity:
  • 2.5GbE LAN ports
• Expansion:
  • 1x M.2 2230 E-Key (CNVI, PCIe Gen 3 [x1], USB 2.0)
  • 1x M.2 2280 M-Key (PCIe Gen 3 [x2], colay with M.2 3052 B-Key x 1)
  • 1x M.2 3052 B-Key (USB 3.2 Gen 2 only) (Optional)

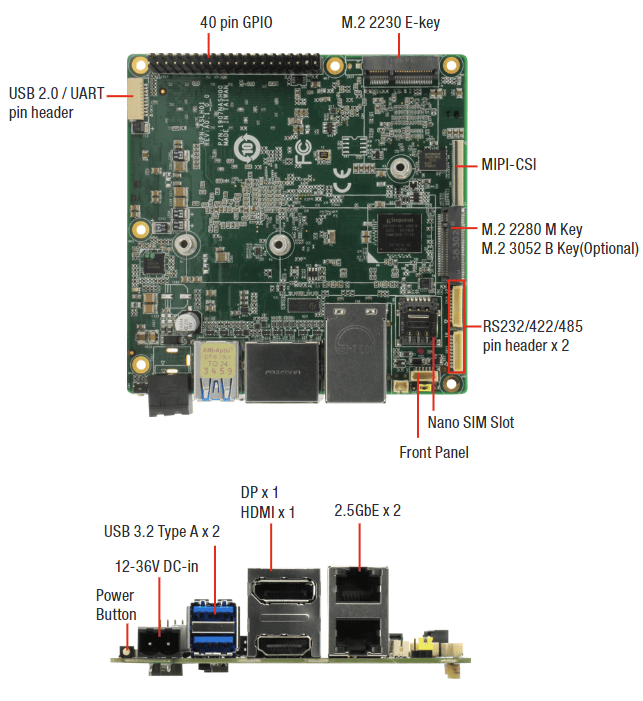

• I/O Interfaces:
  • 40-pin GPIO header
  • 2x RS-232/422/485
• USB:
  • 2x USB 2.0
  • 2x USB 3.2 Gen 2 (Type-A)
• Debug:
  • JTAG (via FT4232H UART/JTAG-USB bridge)
  • 1x JTAG Header
• Power:
  • 12V-36V (via DC-in Phoenix connector)
• Other Features:
  • Onboard TPM 2.0
  • RTC
• Mechanical:
  • 101.6mm x 101.6mm
  • 0.44 lbs

Further information

AAEON didn’t released pricing details for the UP Squared Pro 710H, however the product page is already available for more information.
