Ezurio has announced the Carbon AM67 OSM-MF, a compact solder-down module based on Texas Instruments’ Sitara AM67x processor family. The module offers heterogeneous Arm processing, up to 8GB LPDDR4, eMMC storage, 4-TOPS AI acceleration, multi-display and camera support, dual Gigabit Ethernet, and optional Wi-Fi 6 or Wi-Fi 6E connectivity.

The Carbon AM67 is based on TI’s Sitara AM67x processor family, which integrates up to four 64-bit Cortex-A53 cores running at up to 1.4GHz. Three Cortex-R5F cores operating at up to 800MHz are provided for application MCU, device-management, and run-time management tasks.

Graphics are handled by an IMG BXS-4-64 GPU rated for up to 50 GFLOPS, with OpenGL ES 3.2 and Vulkan 1.2 support. Two Deep Learning Accelerators provide up to 4 TOPS of combined AI performance, while the SoC also includes vision-processing and image-signal-processing hardware.

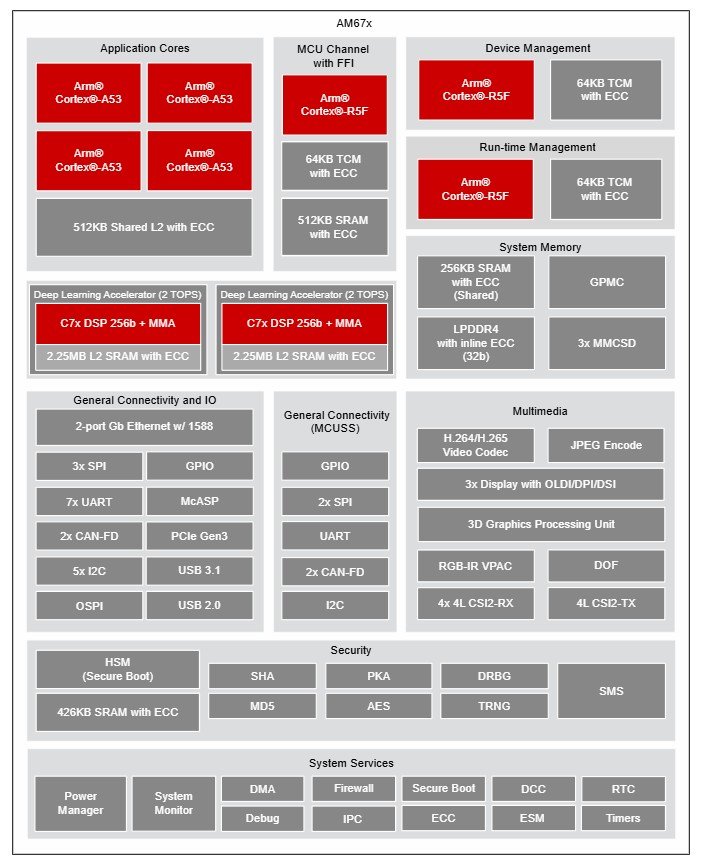

AM67x block diagram

Measuring 45 × 30mm, the OSM-MF v1.2 module is offered with 4GB or 8GB of LPDDR4 memory and up to 128GB of eMMC storage, with 16GB listed as the default configuration.

Display support includes MIPI-DSI and LVDS, with support for up to three independent displays and resolutions reaching 3840 × 1080 at 60fps. Camera connectivity consists of four four-lane MIPI-CSI-2 interfaces supporting up to 16 virtual channels per interface, with lane rates up to 2.5Gbps.

Carbon AM67 OSM-MF block diagram

High-speed interfaces include PCIe Gen3 x1, USB 3.1 Gen1, USB 2.0, and two Gigabit Ethernet interfaces with IEEE 1588 and TSN support. Additional I/O includes CAN-FD, UART, I2C, SPI, PWM, GPIO, SDIO, and I2S.

Wireless options include Ezurio’s Sona TI351 with Wi-Fi 6, the Sona IF513 with Wi-Fi 6E, and the Sona NX611 with Wi-Fi 6.

Carbon AM67 OSM-MF top view

Security features include secure boot with a hardware root of trust, TrustZone-based trusted execution, secure storage, anti-rollback protection, cryptographic acceleration, and a dedicated security controller with an HSM core.

Carbon AM67 OSM-MF bottom view

Ezurio’s software support includes Yocto Linux, Buildroot Linux, Android, Debian, and QNX for the Cortex-A53 cores, along with FreeRTOS for the Cortex-R5F cores.

Low-power modes include DeepSleep, Standby, MCU-only operation, dynamic frequency scaling, and wake support through CAN, GPIO, and UART.

Specifications listed for the Carbon AM67 OSM-MF include:

• Processor:
  • TI AM67x
  • Up to 4x Cortex-A53 @ 1.4GHz
  • 3x Cortex-R5F @ up to 800MHz
• Graphics:
  • IMG BXS-4-64
  • Up to 50 GFLOPS
  • OpenGL ES 3.2, Vulkan 1.2
• AI:
  • 2x Deep Learning Accelerators
  • Up to 4 TOPS total
• Memory:
  • 4GB or 8GB LPDDR4
• Storage:
  • Up to 128GB eMMC
  • 16GB default
• Wireless:
  • Wi-Fi 6 or Wi-Fi 6E options
  • Bluetooth up to 5.4
• Networking:
  • 2x Gigabit Ethernet
  • IEEE 1588
  • TSN
• Display:
  • MIPI-DSI
  • LVDS
  • Up to three independent displays
• Camera:
  • 4x four-lane MIPI-CSI-2
  • Up to 16 virtual channels per interface
• Expansion:
  • PCIe Gen3 x1
  • USB 3.1 Gen1
  • USB 2.0
  • 2x CAN-FD
  • UART, I2C, SPI, PWM, GPIO
• Power:
  • 5V
• Operating temperature:
  • 0°C to +70°C commercial
  • -40°C to +85°C industrial
• Mechanical:
  • OSM-MF v1.2
  • 45 × 30mm
