The Shuttle NT10H is part of the XPC nano lineup and is designed as a compact, NUC-style mini PC for multitasking and heavier workloads. It uses Intel Core Ultra processors based on the Meteor Lake architecture, combining CPU cores, integrated Intel Arc graphics, and a dedicated AI Boost NPU providing up to 34 TOPS of AI performance.

According to the product announcement, processor options include the Intel Ultra 5 125H, Ultra 7 155H, or Ultra 9 185H, with configurable TDP values between 28 W and 45 W. The CPU supports up to 16 cores and 22 threads, targeting applications that require parallel processing and balanced power efficiency.

Graphics are handled by Intel Arc, which provides up to 128 Execution Units, HDR support, and AI-enhanced upscaling. The system can drive up to four 4K displays through two HDMI 2.0 ports and two USB4 Type-C ports with DisplayPort functionality.

• 125H — 14C/18T (4P+8E+2LP-E), (Up to 4.5 GHz); 18 MB Intel Smart Cache, 20W – 115W TDP, Intel Arc Graphics (up to 2.2 GHz), 7 Xe-cores
• 155H — 16C/22T (6P+8E+2LP-E), (Up to 4.8 GHz); 24 MB Intel Smart Cache, 28W – 115W TDP, Intel Arc Graphics (up to 2.25 GHz), 8 Xe-cores
• 185H — 16C/22T (6P+8E+2LP-E), (Up to 5.1 GHz); 24 MB Intel Smart Cache, 35W – 115W TDP, Intel Arc Graphics (up to 2.35 GHz), 8 Xe-cores

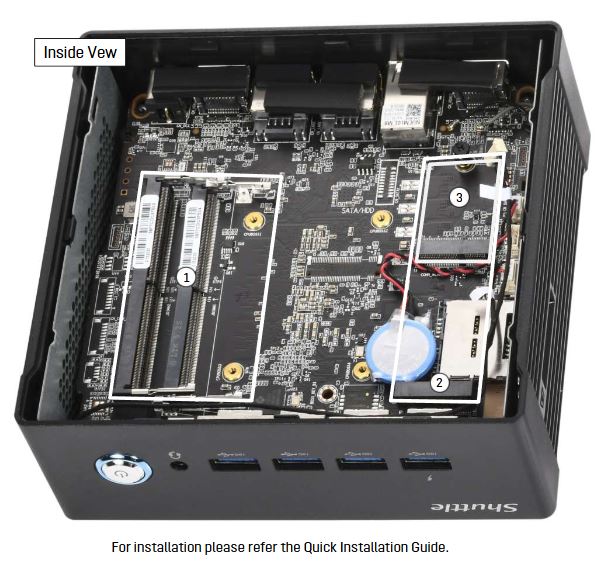

Shuttle XPC nano NT10H Internal View
(click image to enlarge)

Memory support includes two 262-pin DDR5 SODIMM slots, with each slot supporting up to 48 GB for a total of 96 GB, operating at speeds up to 5600 MT/s. Storage expansion is provided by an M.2 2280 slot (PCIe Gen4 x4) and an additional M.2 2230 E-key slot. An integrated SD card reader is also included.

The NT10H provides dual 2.5 GbE LAN ports through Realtek controllers, multiple USB 3.2 Gen2 ports, USB 2.0, and two USB4 Type-C connections with power delivery and video output. Audio is handled by a Realtek ALC269-VC3 codec, with a front-panel 3.5 mm headphone and microphone combo jack.

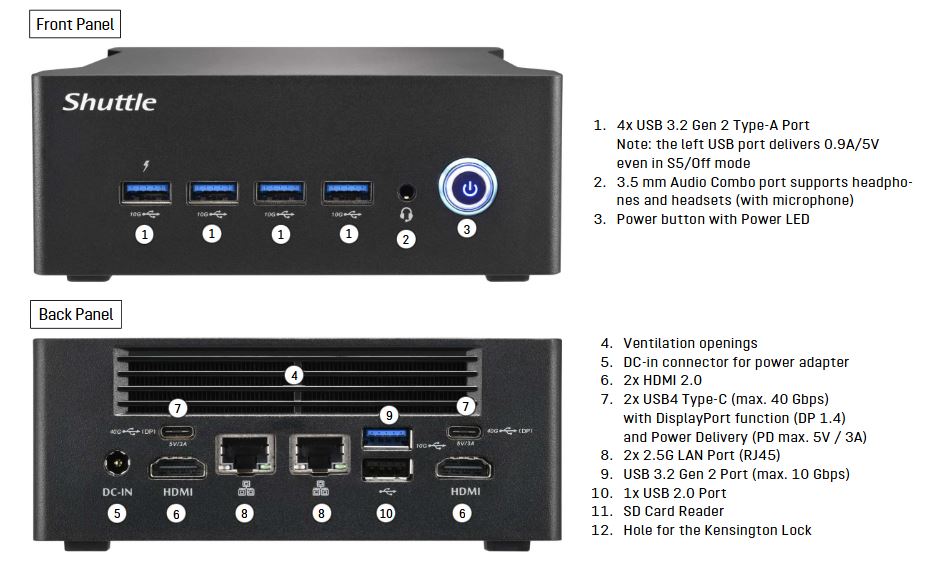

Shuttle XPC nano NT10H Front & Back View
(click image to enlarge)

The chassis uses Shuttle’s 1-liter form factor, measuring 132 × 143 × 55 mm, and includes a VESA mount for flexible installation. A heat pipe and fan cooling system supports stable, continuous operation within a 0 °C to 40 °C ambient temperature range.

Shuttle XPC nano NT10H
(click image to enlarge)

A 120 W power adapter supplies input between 100–240 V AC (19 V, 6.32 A output). Supported operating systems include Windows 11 and Linux distributions. Certifications include FCC, CE, RoHS, and others.

Further Information

This mini PC is already available for ordering, although the model with the Core Ultra 7 is not available as of publication. The barebones NT10H5, which comes with the Core Ultra 5, 8 GB DDR5 SO-DIMM, no OS installed, no M.2 SSD, and an Intel AX200 Wi-Fi 6/Bluetooth module, is listed at €636.00 (excluding VAT).

The NT10H9 with the Intel Core Ultra 9 and a similar configuration starts at €789.00. All models appear to include a two-year Pick-Up and Return plus one-year Bring-In Service warranty.
