This month, Shuttle Computers launched the SPCNV03, an ultra-compact edge computer based on the NVIDIA Jetson Orin Nano. It delivers up to 40 TOPS of AI performance in a fanless aluminum chassis and carries EMC, Safety, and RoHS certifications for use in robotics, automation, video analytics, and smart city applications.

The SPCNV03 is built on the NVIDIA Jetson Orin Nano module, available in two configurations. The 8GB version provides 40 TOPS of AI performance with 1024 CUDA cores and 32 Tensor cores at 7 to 15 watts, while the 4GB version offers 20 TOPS with 512 CUDA cores and 16 Tensor cores at 7 to 10 watts. Both versions integrate a six-core Arm Cortex-A78AE CPU running at 1.5GHz and a GPU frequency of 625 MHz.

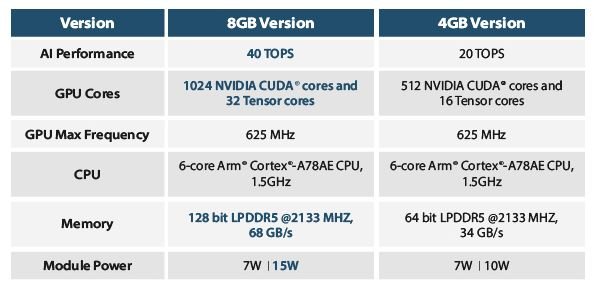

SPCNV03 Platform Specifications(click images to enlarge)
The system supports LPDDR5 memory with bandwidths up to 68 GB/s. The 8GB version runs at 128-bit and 2133 MHz, while the 4GB version uses a 64-bit interface at 2133 MHz with 34 GB/s bandwidth. Storage expansion is available through an M.2 2280 M key slot for PCIe SSDs, supporting up to 128GB.

A second M.2 2230 E key slot enables WLAN or accelerator modules, with Intel and Realtek Wi-Fi options that include Bluetooth 5.0. External dipole antennas are also supported.

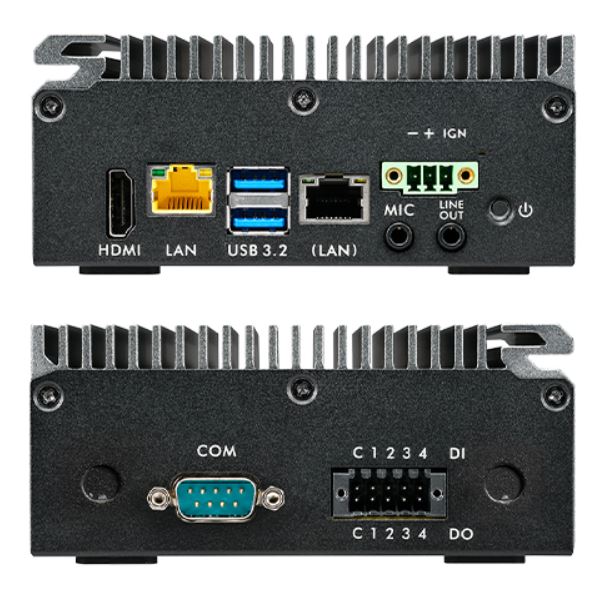

SPCNV03 Front & Rear Views(click images to enlarge)
I/O connectivity includes HDMI 1.4b with resolutions up to 1920 × 1080 at 60Hz and two USB 3.2 Gen2 ports, one with OTG support. Networking is handled by dual LAN with a Realtek 1.0GbE controller and an Intel 2.5GbE controller, which supports optional PoE and PSE functions along with Wake-on-LAN.

For industrial applications, the system provides a configurable RS-232/422/485 DB-9 interface and digital I/O channels that can be expanded to include CAN bus. Line-out and microphone input ports are also present.

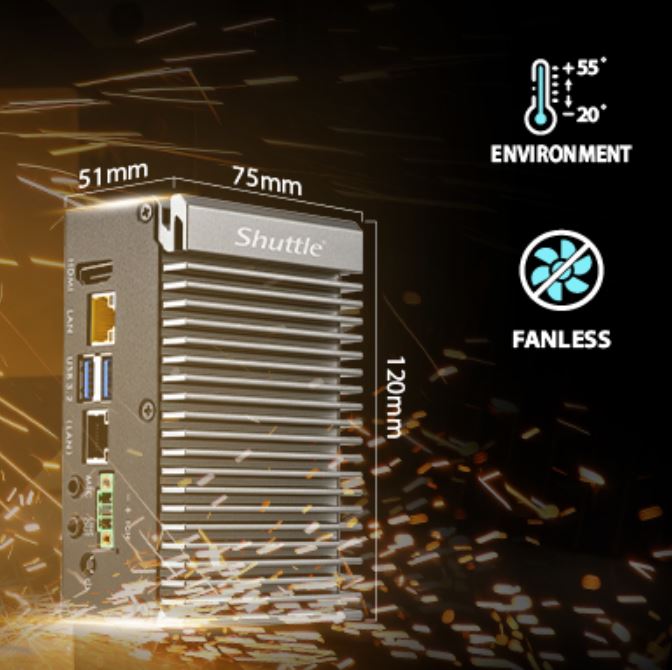

SPCNV03 Dimensions(click images to enlarge)

Software support is based on Linux Ubuntu 22.04, ensuring compatibility with a wide range of AI frameworks and development tools.

Further Information

The SPCNV03 carries certifications for EMC under CE, FCC, VCCI, and BSMI, and for Safety under CB, cTUVus, CEC, and BSMI. It is also RoHS compliant, enabling deployment in global industrial markets. Shuttle Computers states that the SPCNV03 is now available, although pricing details have not been disclosed.
