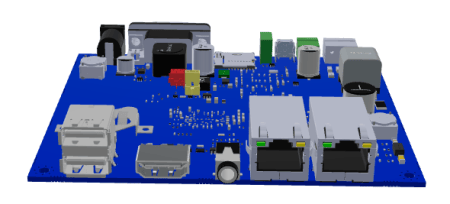

Engicam has showcased a single-board computer based on the RockChip RK3568 series, targeting a range of embedded and industrial applications. This high-performance board offers dual Gigabit Ethernet ports, including one with PoE+ support, as well as an HDMI port capable of up to 4K resolution at 60Hz.

Powered by the RockChip RK3568 or RK3568J CPU, the board features a quad-core ARM Cortex-A55 processor running at 1.8GHz, making it suitable for tasks requiring reliable processing and network connectivity in industrial environments.

Its graphics capabilities include support for 2D and 3D rendering, with compatibility for various compute API standards such as OpenCL 2.0, OpenGL ES 1.1, 2.0, and 3.2, and Vulkan 1.0 and 1.1. The board supports hardware decoding for HEVC/H.265 and VP9 up to 8K at 60fps, along with encoding for AVC/H.264 and HEVC/H.265.

The board supports up to 8GB of LPDDR4 memory at 3200 MTs, which enables efficient multitasking and handling of resource-intensive tasks. For storage, it offers options including onboard eMMC and support for a MicroSD card through an SDIO bus.

Connectivity features include two Gigabit Ethernet ports, with one fully compliant with IEEE 802.3bt PoE+ standards, allowing for power and data transfer over a single cable, which is beneficial for installations in remote or constrained spaces.

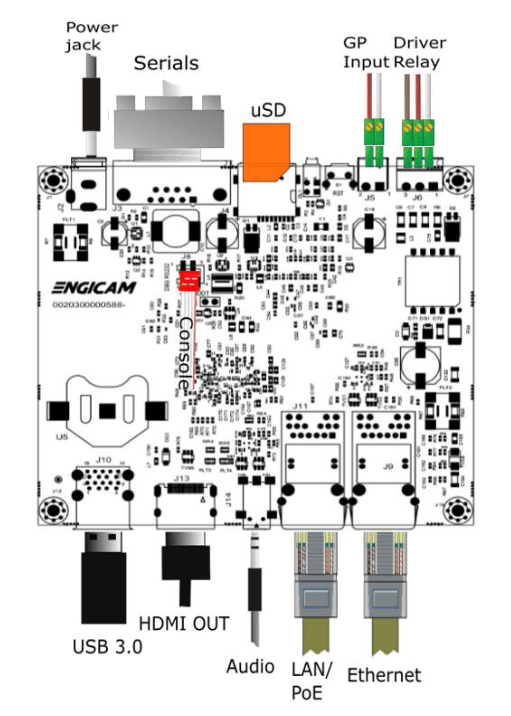

Other hardware interfaces include HDMI output for 4K video, I2S audio, dual USB 3.0 ports, dual RS232 ports, a digital GPIO input (up to 32V), and a 12V driver relay.

The board is compatible with both Linux Yocto and Android operating systems, providing flexibility for developers. Measuring 113 x 100 mm, it supports power input from 17V to 26V DC via a jack connector or from 36V to 57V DC through PoE. It is designed to operate within consumer and industrial temperature ranges, with industrial models rated up to 125°C.

Further information

Engicam indicates that the board will be available through 2034, with more details on the product page. However, pricing and general availability have not been disclosed.
