Renesas Electronics has introduced the RZ/V2N Evaluation Kit, a platform for developing embedded systems with on-device AI. Built around the RZ/V2N microprocessor, it combines an AI accelerator, image signal processor, and security features for vision-based edge applications.

The evaluation platform includes two boards: the RTK0EF0186C02000BJ main board and the RTK0EF0168B00000BJ expansion board. The main board has a compact 153mm × 100mm footprint and integrates key components including the RZ/V2N MPU, a RAA215300A2GNP#HA2 power management IC, and a 5L35023B clock generator.

RZ/V2N Evaluation Kit Block Diagram(click image to enlarge)
The RZ/V2N microprocessor features a quad-core Arm Cortex-A55 (1.8GHz) for application processing and a Cortex-M33 (200MHz) for real-time control. It includes the DRP-AI accelerator for low-latency, low-power AI inference and optionally integrates the Arm Mali-C55 ISP for advanced image signal processing.

RZ/V2N Block Diagram(click image to enlarge)
Memory resources include 8GB of LPDDR4X and 64MB of xSPI Flash. Additional storage options are available via a microSD slot, a selectable secondary microSD slot, or an external 64GB eMMC module.

For high-speed data transfer and multimedia support, the kit offers dual Gigabit Ethernet ports, USB 3.2 Gen2 (host), USB 2.0 OTG, and a PCIe Gen 3 slot with up to two lanes. It also features two MIPI CSI-2 connectors for camera input and a MIPI-DSI display interface.

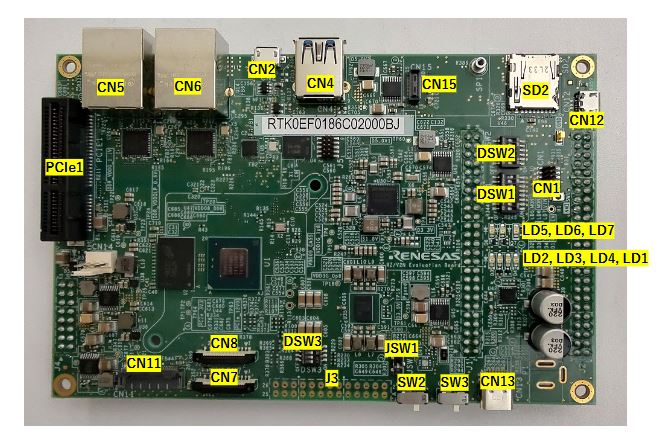

RZ/V2N Evaluation Ki Top View(click image to enlarge)
The expansion board adds further capabilities, including an HDMI Type-A output via the ADV7535 transmitter, four Pmod connectors supporting GPIO, SPI, UART, and I²C, and three 3.5mm audio jacks for microphone, auxiliary input, and headphone output.

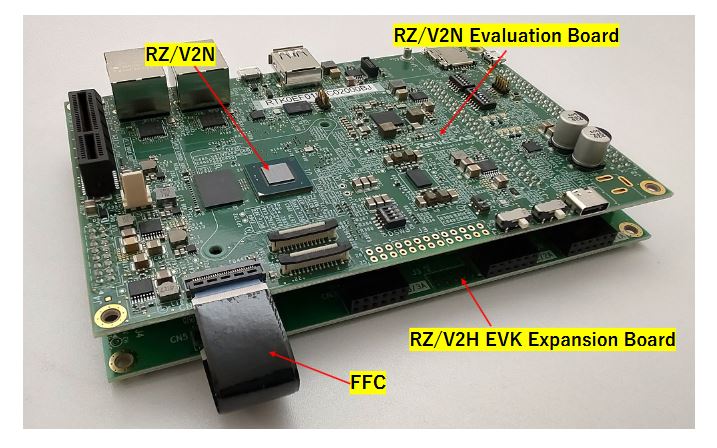

RZ/V2N Evaluation Kit(click image to enlarge)
Specifications listed for the RZ/V2N Evaluation Kit:

• Memory:
  • 8GB LPDDR4X (Micron MT53E2G32D4DE-046)
  • 64MB NOR Flash (MT25QU512ABB8E12)
  • 64GB eMMC (MTFC64GBCAQTC-IT)
• Storage:
  • microSD slot
  • eMMC
  • dual-slot flexibility
• Connectivity:
  • 2× Gigabit Ethernet (KSZ9131RNXI)
  • 1× PCIe Gen 3 (x2 lanes)
• Camera & Display:
  • 2× MIPI CSI-2 (CF20221V0R0-NH)
  • 1× MIPI-DSI (with HDMI Tx via ADV7535)
• Audio Interfaces:
  • MIC, AUX-IN, Headphone (3.5mm jacks)
• Pmod Interfaces:
  • GPIO, SPI
  • UART, I2C
• USB:
  • 1× USB 3.2 Gen2 (Type-A, Host)
  • 1× USB 2.0 (micro-AB, OTG)
• Debug Interfaces:
  • USB Micro-B (FT230XS)
  • 10-pin debugger header
• Power:
  • USB-PD Type-C (≥60W)
• Mechanical:
  • 153×100×1.7 mm (CPU board)
  • 153×100× 1.7 mm (Expansion board)

Further Information

The RZ/V2N Evaluation Kit is currently listed for $519.62 on Mouser.
