Orange Pi has unveiled the Orange Pi 4 Pro, a compact single-board computer designed for high-performance edge applications. It integrates an octa-core Allwinner A733 processor, a 3 TOPS NPU, and supports up to 16 GB of LPDDR5 memory, combining AI acceleration with a wide range of expansion interfaces.

This SBC features the same SoC found in the Radxa Cubie A7Z i and Cubie A7A introduced earlier this year. The processor combines two Arm Cortex-A76 cores and six Cortex-A55 cores clocked at up to 2.0 GHz, paired with an Imagination BXM-4-64 GPU and a RISC-V E902 co-processor for auxiliary control.

The on-board NPU delivers up to 3 TOPS of AI performance and supports INT8, INT16, FP16, and BF16 mixed precision. It is compatible with popular frameworks such as TensorFlow, PyTorch, and ONNX.

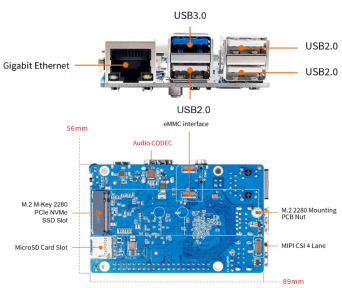

Orange Pi 4 Pro Side & Bottom View

Connectivity and storage options include Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.4, as well as support for eMMC, SPI Flash, and M.2 NVMe SSD (PCIe 3.0). A microSD card slot provides additional storage up to 128 GB.

The board offers dual MIPI-CSI interfaces (2-lane and 4-lane) for stereo camera input, a 4-lane MIPI-DSI display connector, and an HDMI 2.0 port supporting 4K output at 60 Hz.

Orange Pi 4 Pro Pinout

Expansion is available through a 40-pin multifunction header that supports GPIO, UART, I²C, SPI, and PWM for connection to sensors and peripherals.

Orange Pi 4 Pro Top View

Additional features include a 3.5 mm audio jack, single speaker and microphone interfaces, USB 3.0 and USB 2.0 ports, a fan header, and onboard buttons for power, boot, and reset.

Specifications listed for the Orange Pi 4 Pro include:

• Memory / Storage:
  • Up to 16 GB LPDDR5 memory
  • Optional eMMC modules: 16 GB, 32 GB, 64 GB, or 128 GB
  • Optional SPI Flash: 128 Mb or 256 Mb
  • 1× M.2 M-Key slot (PCIe 3.0, NVMe SSD support)
  • 1× microSD card slot (up to 128 GB)
• Audio:
  • 3.5 mm headphone jack (input/output)
  • Single speaker output and microphone input
• Display:
  • 1× HDMI 2.0 port (up to 4K @ 60 Hz)
  • 1× 4-lane MIPI-DSI display interface
• Camera:
  • 1× 2-lane MIPI-CSI camera interface
  • 1× 4-lane MIPI-CSI camera interface
• Connectivity:
  • Gigabit Ethernet (YT8531CA PHY), supports PoE power
  • Integrated Wi-Fi 6 and Bluetooth 5.4 with BLE
• I/O Interfaces:
  • 40-pin expansion header (GPIO, UART, I²C, SPI, PWM)
  • 2-pin 5 V DC fan header
  • BOOT, RESET, and POWER buttons
• USB:
  • 1× USB 3.0 host port
  • 3× USB 2.0 host ports
• Power:
  • 5 V DC input via Type-C connector
• Mechanical:
  • 89 × 56 mm
  • 58 g

Further Information

The product page for the Orange Pi 4 Pro is already available, but as Liliputing notes, the company has not yet shared additional launch or availability details.
