The CL260 is presented as an ultra-compact industrial edge gateway built around Intel N-Series processors. It is intended for deployments that require a small, durable, and headless controller operating within cabinet-mounted or space-restricted environments. The system offers configuration options for storage, wireless connectivity, and operating systems.

The system uses either the Intel N150 or Intel N250 processor, both part of Intel’s latest low-power N-Series lineup. It integrates 8 GB of LPDDR5 memory operating at 4800 MT/s and provides an M.2 2280 M-Key slot for SATA or NVMe storage.

• N150 — 4C/4T (up to 3.60 GHz); 6 MB Cache, 24 EU, Intel UHD Graphics (up to 1.00 GHz), 6W TDP
• N250 — 4C/4T (up to 3.80 GHz); 6 MB Cache, 32 EU, Intel UHD Graphics (up to 1.25 GHz), 6W TDP

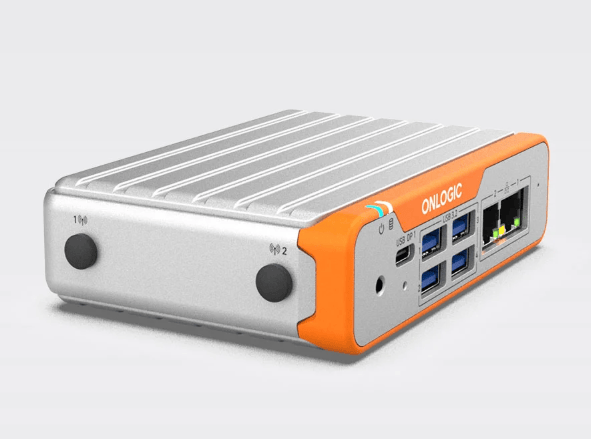

OnLogic CL260

Connectivity is oriented toward industrial and automation environments. The front panel provides four USB 3.2 Gen1 Type-A ports, two USB-C ports supporting DisplayPort 1.4 over DP Alt Mode, and two Gigabit Ethernet ports.

The bottom panel includes a terminal block for RS-232/422/485 serial communication and an M.2 2230 E-key slot designed for optional Wi-Fi 6E modules. Display output is available exclusively through USB-C.

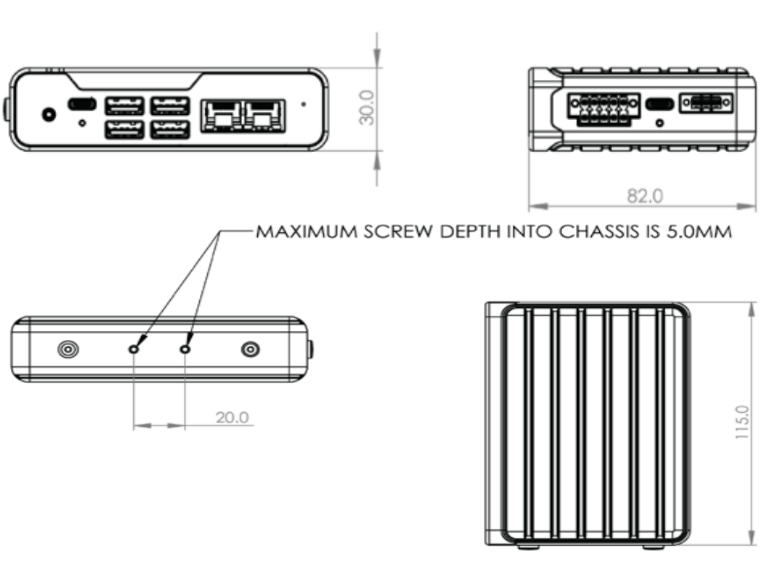

OnLogic CL260 Dimensions

Power input is supplied through a 3-pin terminal block accepting 12–24 VDC. An optional PoE splitter can also be used; however, CPU turbo mode must be disabled when operating under PoE due to thermal constraints.

Software options include Ubuntu Server 24.04, Ubuntu Desktop 24.04, and Windows 11 IoT Enterprise 2024 LTSC.

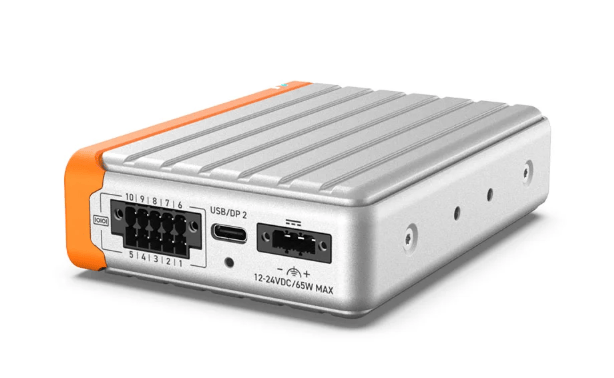

OnLogic CL260 Side View

The enclosure measures 115 × 82 × 30 mm and uses a passively cooled design optimized for DIN-rail and wall installation. The operating temperature range is specified from 0°C to 50°C when powered by a terminal-block supply, with a 0–40°C limit when using the approved AC adapter.

Specifications listed for the OnLogic CL260 include:

• Graphics / Display
  • Display over USB-C only
  • Supports up to 2 displays
  • USB-C DP 1.4 Alt Mode (5V/3A)
• Memory / Storage
  • 8 GB LPDDR5 memory
  • Single-channel, 4800 MT/s
  • 1× M.2 2280 slot (NVMe or SATA SSD)
• Connectivity
  • 2× 1 GbE LAN (Realtek RT8111G-CG)
  • 4× USB 3.2 Gen1 Type-A
  • 1× USB 3.2 Gen1 Type-C (front, DP Alt Mode)
  • 1× USB 3.2 Gen1 Type-C (rear, DP Alt Mode)
  • 1× RS-232/422/485 serial port
  • Optional M.2 2230 E-Key Wi-Fi 6E / Bluetooth module
• Security
  • Onboard TPM 2.0 module
• I/O Interfaces
  • Front panel:
  • USB-C (DP 1.4), 4× USB-A 3.2, dual GbE LAN, reset button, power button
  • Rear panel:
  • USB-C (DP 1.4), RS-232/422/485, 3-pin terminal block power input
• Expansion
  • 1× M.2 2230 E-Key slot (PCIe x1 / USB 2.0) for wireless modules
• Power
  • 12–24 VDC input
  • 3-pin terminal block connector
  • PoE-based powering possible through optional splitter
  • Note: CPU turbo must be disabled when powering through PoE splitter
• Mechanical
  • 115 × 82 × 30 mm
  • 1 lb
  • Cast aluminum and plastic enclosure
  • 2 antenna punchouts
  • DIN-rail & VESA mounting options
