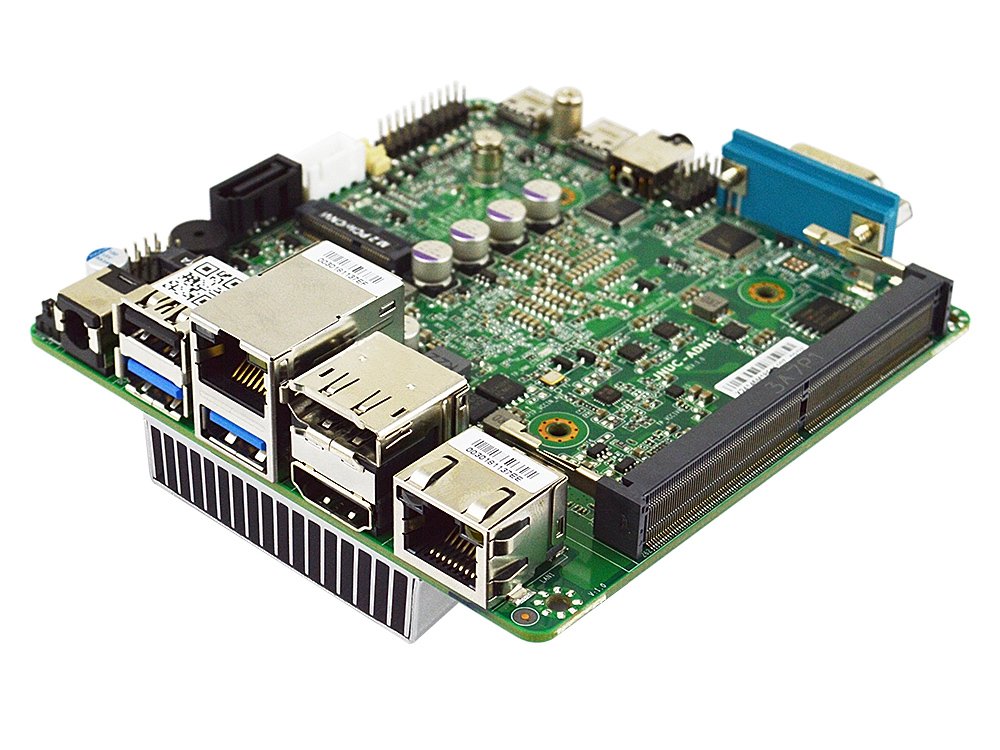

The JNUC-ADN1 is an embedded board with a NUC form-factor, powered by the Intel N97 low-power processor. This board is tailored for applications requiring efficient performance and compact size, such as digital signage and other commercial or industrial uses.

The JNUC-ADN1 series is built around the Intel processor N97, which offers up to 3.60 GHz with a configuration of 4 cores and 4 threads under a 12W thermal design power. This processor is part of the Alder Lake-N family, designed for efficient performance in low-power environments.

• N97 — 4C/4T, (Up to 3.6 GHz); 6 MB Cache, 12W TDP, Intel UHD Graphics (up to 1.20 GHz), 24 Execution Units

The series supports up to 16GB of DDR5-4800 memory through a single 262-pin SO-DIMM slot. For storage, the JNUC-ADN1 offers a SATA3 6Gb/s port and an M.2 slot compatible with both SATA and PCIe 3.0 x2 NVMe SSDs. Certain models, such as the JNUC-ADN1-N97008, also include 64GB of onboard eMMC storage.



Networking capabilities are robust, featuring two Intel I225-V PCIe 2.5GbE LAN ports. The board also includes Realtek ALC897 HD Audio for clear sound output, essential in multimedia projects.

The processor is equipped with Intel UHD Graphics, supporting up to three displays with capabilities such as HDMI 2.0b 4K@60Hz and DisplayPort 1.4a 4K@60Hz.

The JNUC-ADN1 supports various operating systems, including Windows 10 and Windows 11, along with their IoT Enterprise editions. It is also compatible with several Linux distributions, such as Ubuntu 22.04 and CentOS 9, ensuring versatility across different software environments.

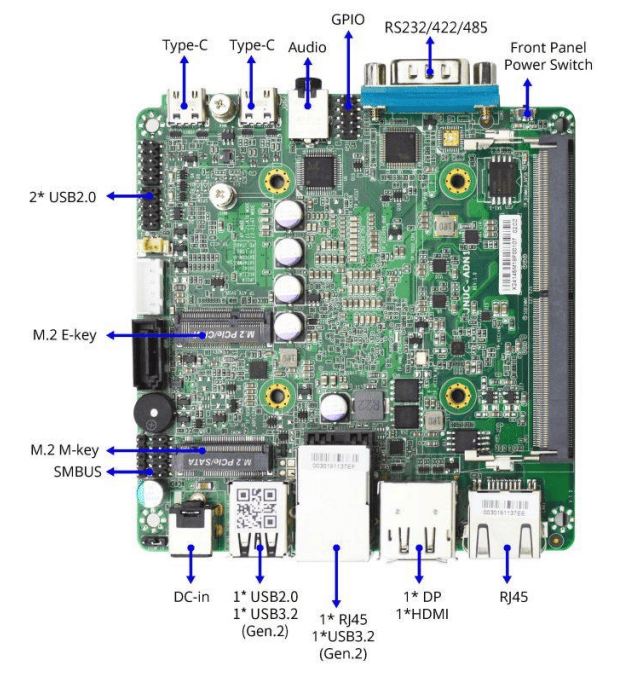

Specifications listed for the JNUC-ADN1:

• Memory:
  • 1x DDR5-4800 SODIMM slot (up to 16GB total)
  • 1x SATA3 6Gb/s port
  • 64GB EMMC (optional)
•  Audio/Display:
  • Realtek HD Audio
  • Line-out/Mic combo jack
•  Connectivity:
  • 2x Intel i225-V 2.5GbE LAN
•  Expansion:
  • M.2 M-key SATA or PCIE 3.0 x2 NVME 2260/2280
  • M.2 E-key 2230 for Wi-Fi
• I/O Interfaces:
  • Serial port (RS232/422/485)
• Other Features:
  • AMI Flash ROM
• USB:
  • 2x USB 3.2 Gen2 port Type-C (DP Alt Mode)
  • 2x USB 3.2 Gen2 ports
  • 1x USB 2.0 port
  • 1x USB header for 2x USB 2.0 ports
• Power:
  • 12-19V DC-in jack
• Operating Temperature:
  • -20ºC to 60ºC
• Mechanical:
  • 101 x 101mm

Further information

The JNUC-ADN1 comes with a two-year limited warranty and it’s available for €279.00 from the CarTFT website.
