The MS-C927 is an upcoming compact fanless box PC built on Intel’s Meteor Lake-U and Arrow Lake-U processors. It targets low-power, silent operation in industrial and embedded environments such as automation, transportation, and edge computing, and comes in a 130 × 155 × 40 mm form factor with wall and DIN-rail mounting options.

Processor choices include Intel Core Ultra Series 1 Meteor Lake-U and Series 2 Arrow Lake-U devices, supporting performance cores up to 5.3 GHz and efficiency cores up to 4.2 GHz. Integrated graphics provide output for up to two independent displays via DisplayPort at resolutions of 4096 × 2304 at 60 Hz.

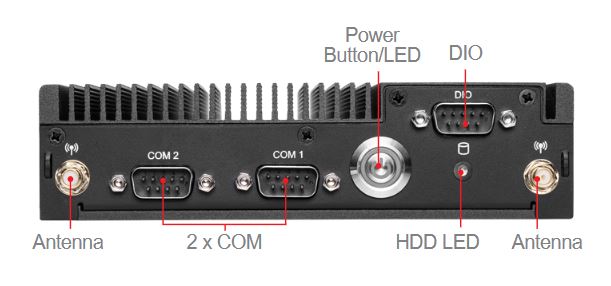

MS-C927 Front View
(click image to enlarge)

System memory is expandable through two DDR5 SO-DIMM slots, supporting up to 96–128 GB at 5600–6400 MHz depending on the CPU. The platform includes one Intel I219-LM GbE port and one Intel I226-V 2.5 GbE port, along with four USB 10 Gbps ports and two configurable COM ports.

Expansion is supported through three M.2 slots: an M key slot for NVMe SSDs, a B key slot for additional modules, and an E key slot with CNVi support for wireless connectivity, complemented by two antenna openings.

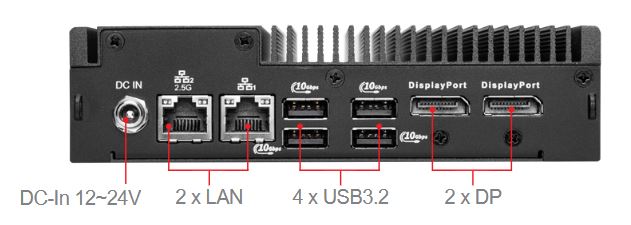

MS-C927 Rear View
(click image to enlarge)

Additional onboard features include GPIO, TPM 2.0 security, a watchdog timer, and Realtek ALC897 audio. The design complies with IEC 61373 standards for vibration and shock resistance and supports operation from –10 to 60 °C when paired with SSD storage and adequate airflow.

Wide-range 12–24 V DC input with over-current and over-voltage protection provides stable operation in industrial environments.

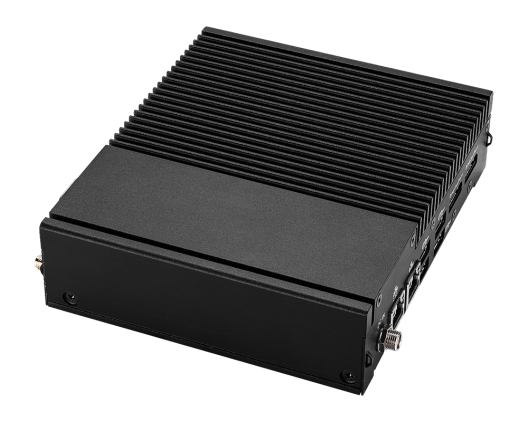

MS-C927
(click image to enlarge)

According to the datasheet, the MS-C927 supports Windows 11 IoT Enterprise LTSC, Windows 10 IoT Enterprise LTSC, and Linux upon request.

Further Information

MSI has not provided pricing details, though the product page is already live with specifications and some documentation.
