Mini-ITX Single Board Computer w/ Tiger Lake processors, quad display, PCIe x4 and dual GbE ports produced by ICP

May 15, 2022 — by Giorgio Mendoza 794 views

The KINO-TGL is equipped with 11th Gen Intel Core Processors (Tiger Lake), 64GB of DDR4 RAM, quadruple display,  and abundant expansion slots including PCIe x4 and Wi-Fi/Bluetooth support.

The KINO-TGL offers four processor configurations. There are three board variations which integrate Intel Tiger Lake processors (i3, i5 and i7), and there is one low-cost version which incorporates the Intel Celeron 6305 (up to 1.8GHz).

— ADVERTISEMENT —

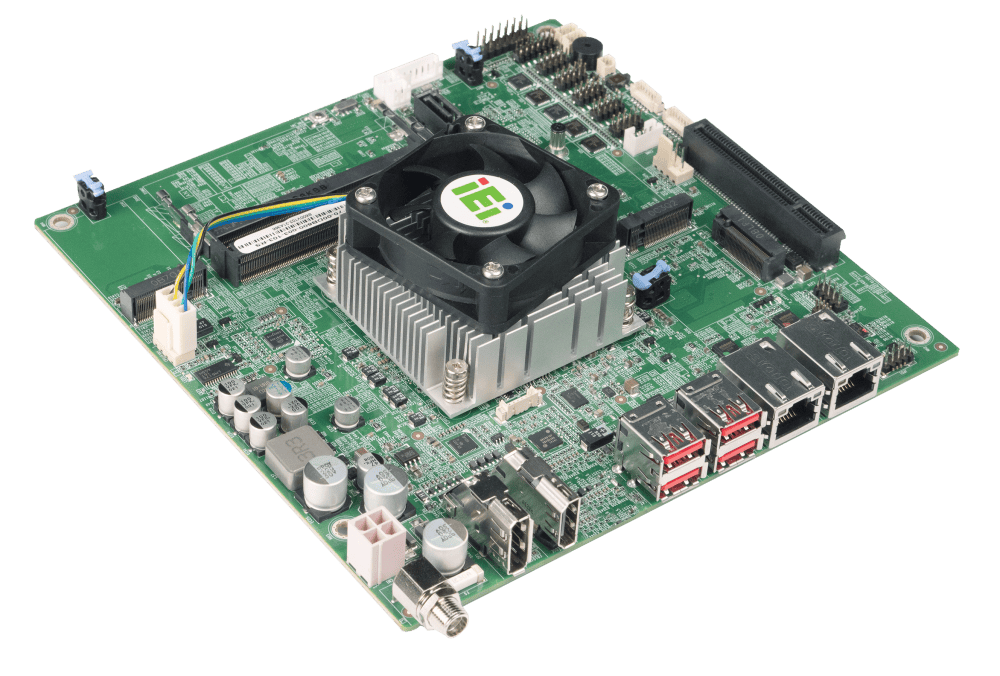

KINO-TGL Single Board Computer
(click image to enlarge)


There is support for two DDR4 slots (3200MHz) for a maximum of 64GB RAM. The KINO-TGL provides a flexible storage interface which accommodates 2x SATA ports (6GB/s), 1x PCIe x4 slot, 1x M.2 A key and a 1x M.2 M Key.

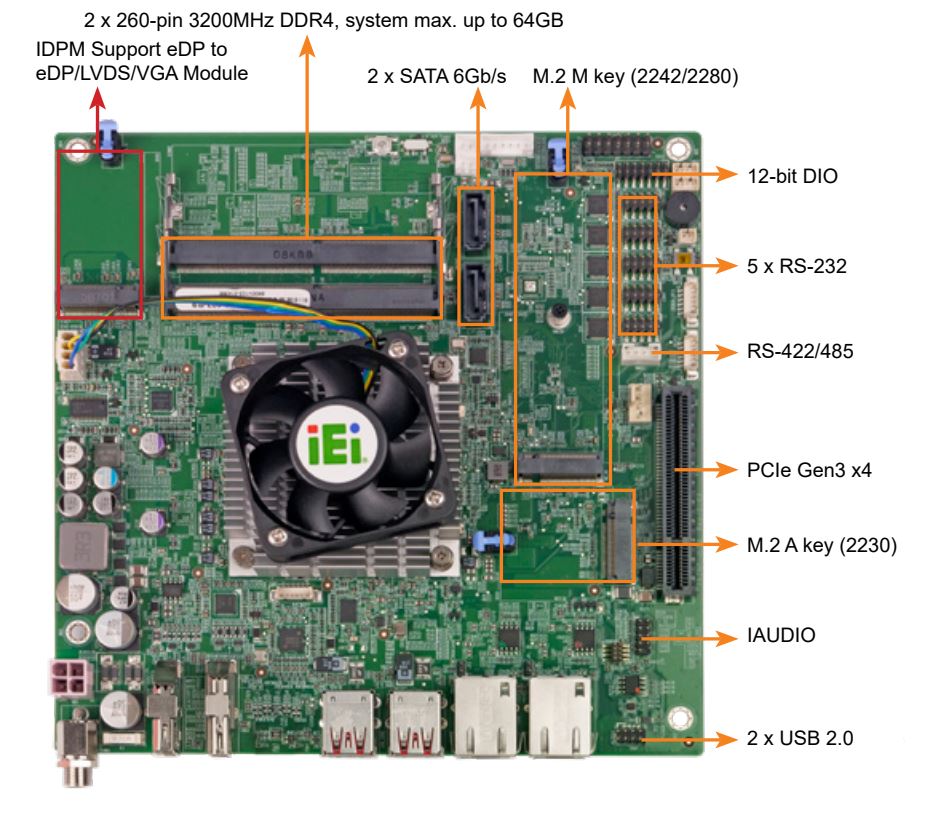

KINO-TGL top view
(click image to enlarge)


The KINO-TGL datasheet mentions its triple independent display support through 1x HDMI, 1x DP, 1xEIE IDPM 3040 slot (only for IEI eDP/LVDS/VGA module) as well as a USB type C.

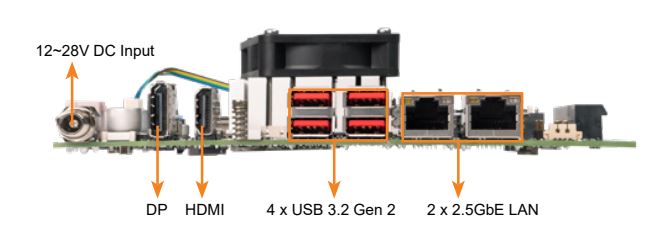

KINO-TGL side view
(click image to enlarge)


For connectivity support, the KINO-TGL has 2x GbE LAN ports, 1x M.2 A key for Bluetooth/Wi-Fi, 1 x RS-422/485 (RS-485 support AFC), 2x USB 2.0 and 5x RS-232. All variants come with the same specs except the integrated processors.



Specifications listed for the KINO-TGL single board computer include:

  • Processor System:
    • 11th Gen. Intel Tiger Lake-UP3 SoC
    • Intel Core i7-1185G7E (up to 4.8GHz, quad-core, 12M Cache, TDP 28/15/12W)
    • Intel Core i5-1145G7E (up to 4.4GHz, quad-core, 8M Cache, TDP 28/15/12W)
    • Intel Core i3-1115G4E (up to 4.1GHz, quad-core, 6M Cache, TDP 28/15/12W)
    • Intel Celeron 6305 (up to 1.8GHz, dual-core, 4M Cache, TDP 15W)
  • Memory:
    • 2x 260-pin 3200MHz DDR4 (max up to 64GB)
  • Graphics:
    • Intel HD Graphics Gen 12 Gfx
    • HDMI 2.0 integrated, 4 Display Pipes, 8k60210b
  • Display:
    • Triple independent display
    • 1 x HDMI 1.4 (up to 4096 x [email protected])
    • 1 x DP 1.4 (up to 4096 x 2160 @60Hz)
    • 1 x IEI IDPM 3040 slot (eDP/LVDS/VGA)
  • Audio:
    • 1 x IAUDIO, support IEI AC-KIT-888S Audio Module
  • Ethernet:
    • LAN1: Intel I225V 2.5GbE controller
    • LAN2: Intel I225V 2.5GbE controller
  • External I/O Interface:
    • 4 x USB 3.2 Gen 2 (10Gb/s)
  • Internal I/O Interface:
    • 2 x SATA 6Gb/s
    • 1 x RS-422/485 (RS-485 support AFC)
    • 2 x USB 2.0
    • 5 x RS-232
  • Expansion:
    • 1 x PCIe x4 slot, open-ended (PCIe Gen3 x4)
    • 1 x M.2 A key (2230) (PCIe Gen3 x1 & USB 2.0)
    • 1 x M.2 M key (2242/2280) (PCIe Gen3 x2)
  • Front Panel:
    • 1x Front Panel (2×7 pin, power LED, HDD LED, power button, reset button)
  • Other Features:
    • 1 x SMBus
    • 1x 12-bit digital I/O
    • 1x I²C
    • 2 x LAN LED
    • 1 x CPU fan connector
    • 1 x System fan connector
    • Support Intel PTT (TPM 2.0)
    • Watchdog timer (256 segments)
  • Power:
    • 10-28V DC input
    • 1 x Internal power connector
    • 1 x External DC power jack
  • Operating Temperature:
    • 0 – 60°C
  • Dimensions:
    • 170 mm x 170 mm
  • Certification:
    • CE/FCC Compliant



Further information

The KINO-TGL-U-i5-R10 (i5 processor) costs ~$762 while the KINO-TGL-U-C-R10 (Celeron 6305E processor) ships for ~$369.50. No price info was given for the other two variations (i7 and i3), however they will be available around the end of May 2022. All SBC variations ship with 1x SATA cable, 1x Power cable for P4.
