The Meerkat is a compact mini PC designed to deliver high performance while maintaining a small physical footprint. It is powered by Intel Core Ultra processors and features Intel Arc graphics. The system supports multiple Linux operating systems, including Pop!_OS 22.04 LTS and Ubuntu 24.04 LTS, among others.

The system is available with either the Ultra 5 125H processor, which operates at up to 4.5 GHz with 14 cores, or the Ultra 7 155H, which reaches up to 4.8 GHz with 16 cores. Both processors integrate performance, efficient, and low-power cores for optimized workload management.

• 125H — 14C/18T (4P+8E+2LP-E), (Up to 4.5 GHz); 18 MB Intel Smart Cache, 20W – 115W TDP, Intel Arc Graphics (up to 2.2 GHz), 7 Xe-cores
• 155H — 16C/22T (6P+8E+2LP-E), (Up to 4.8 GHz); 24 MB Intel Smart Cache, 28W – 115W TDP, Intel Arc Graphics (up to 2.25 GHz), 8 Xe-cores

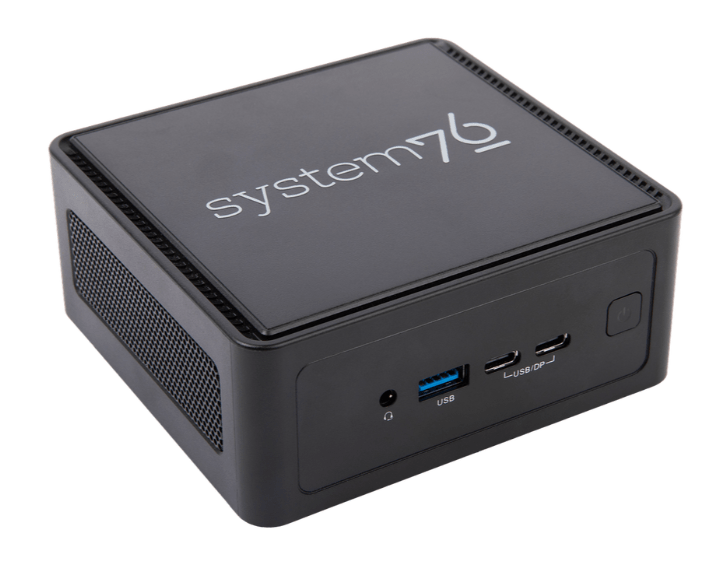

Meerkat meer9
(click image to enlarge)

The Meerkat supports up to 96 GB of DDR5 memory running at 5600 MHz, enabling smooth multitasking and handling data-intensive applications. Storage options include a PCIe Gen4 NVMe M.2 SSD and a SATA 2.5-inch drive, with a maximum combined capacity of 16 TB. Additionally, an extra M.2 slot with PCIe Gen4x4 support allows for further expansion.

The system provides multiple connectivity options for peripherals and high-speed data transfer. The front panel includes a USB 3.2 Gen2 Type-A port, a USB4/Thunderbolt 4 port supporting DisplayPort 2.1, and a USB 3.2 Gen2x2 Type-C port with DisplayPort 1.4a support.

The rear panel includes two additional USB 3.2 Gen2 Type-A ports. For networking, the Meerkat features two Intel 2.5 Gigabit LAN ports along with built-in Wi-Fi 6E and Bluetooth 5.3.

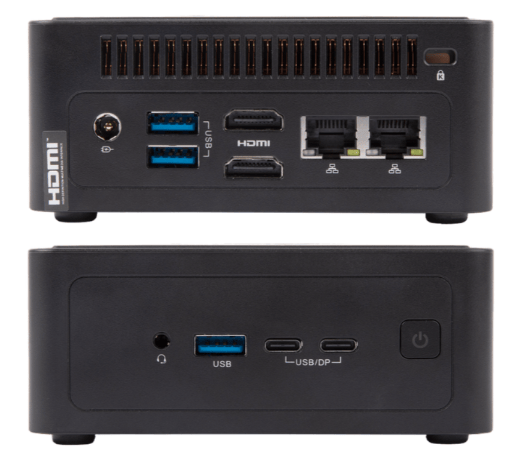

Meerkat meer9 peripherals
(click image to enlarge)

Quad-display support is available through two HDMI 2.1 TMDS ports, a DisplayPort 2.1 output from the USB4 interface, and a DisplayPort 1.4a output from the Type-C port. Audio functionality includes a headphone and microphone jack.

Power consumption depends on the processor model. The Ultra 5 125H variant operates with a 90W power adapter, while the Ultra 7 155H requires a 120W power adapter.

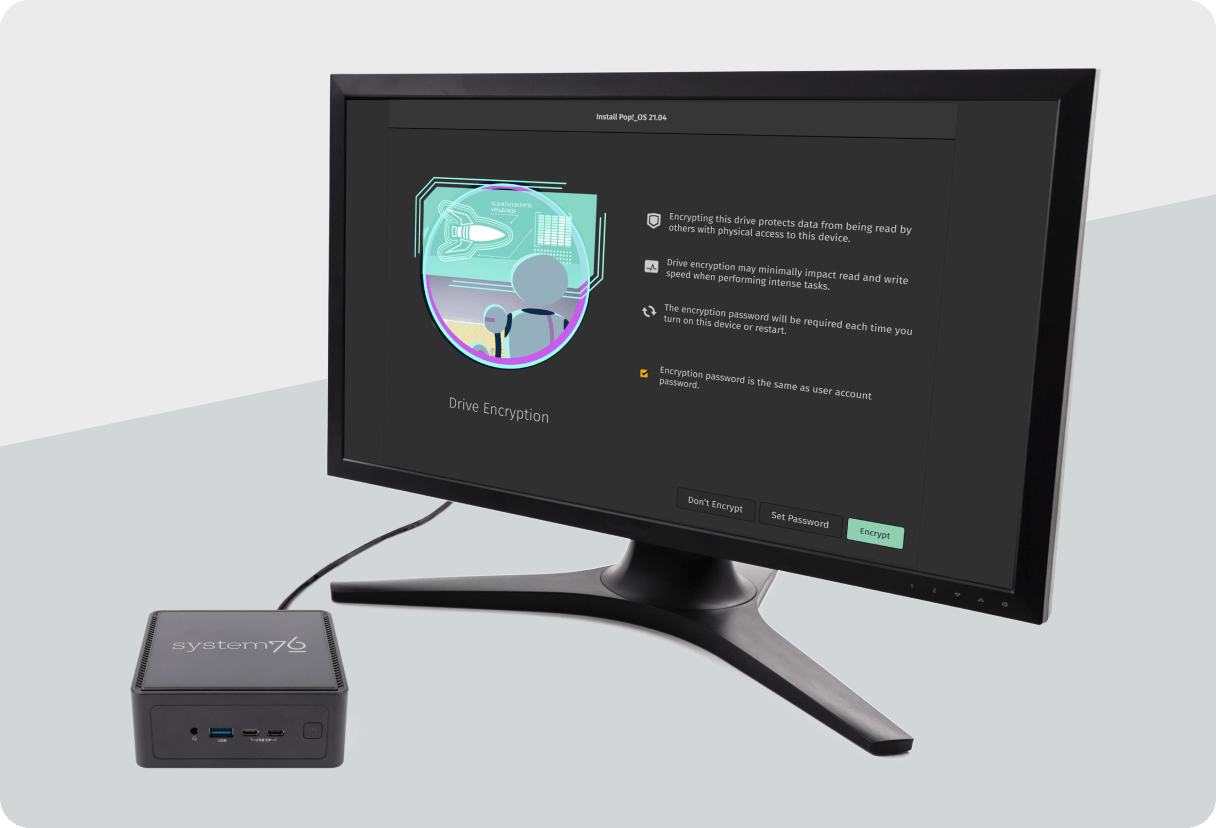

Meerkat meer9
(click image to enlarge)

It ships with Pop!_OS 22.04 LTS, Ubuntu 22.04 LTS, or Ubuntu 24.04 LTS, with additional support for other Linux distributions and Microsoft Windows.

The system is built for long-term usability with upgradeable memory and storage. System76 provides detailed upgrade guides and lifetime support to assist users in maintaining and expanding their systems.

Specifications for the Meerkat meer9:

• Memory:
  • Up to 96 GB Dual Channel DDR5 5600 MHz
• Storage:
  • Up to 16 TB total storage
  • 1x M.2 PCIe Gen4 NVMe slot
  • 1x SATA 2.5″ slot
  • Additional support for 1x M.2 (Key M, 2242) PCIe Gen 4×4 SSD
• Expansion & Connectivity:
  • Front Ports:
  • 1x USB 3.2 Gen2 Type-A
  • 1x USB4/Thunderbolt 4 (Supports DisplayPort 2.1 output)
  • 1x USB 3.2 Gen2x2 (Type-C, Supports DisplayPort 1.4a output)
  • Rear Ports:
    • 2x USB 3.2 Gen2 Type-A
• Networking:
  • 2x Intel® 2.5 Gigabit LAN
  • 1x Wi-Fi 6E (802.11ax) + Bluetooth 5.3
• Video Output:
  • Supports quad-display output
  • 2x HDMI 2.1 TMDS
  • 1x DisplayPort 2.1 (via USB4)
  • 1x DisplayPort 1.4a (via Type-C)
• Audio:
  • 1x headphone & microphone jack
• Power Supply:
  • Ultra 5 125H model: 19V, 90W Power Adapter
  • Ultra 7 155H model: 19V, 120W Power Adapter
• Mechanical:
  • Dimensions: 117.5 x 110.0 x 49 mm
  • VESA support

Further information

As System76 notes, the Meerkat meer9 is a compact mini PC with DDR5 RAM, faster memory speeds, Intel Arc graphics, and open-source Coreboot firmware, featuring a space-saving design with VESA mount support.

The Meerkat with the Intel Core Ultra 5 125H processor starts at $799, while the model with the Ultra 7 155H is priced at $1,049. Both configurations include a 500 GB PCIe4 M.2 SSD and 16 GB of DDR5 5600 MHz memory (1×16 GB) as part of the base price.
