Luckfox has introduced the Lume, a compact development board based on the Allwinner T153 industrial processor. The board combines a quad-core Arm Cortex-A7 with a RISC-V E907 core, along with dual Gigabit Ethernet, MIPI display and camera interfaces, and onboard memory and storage.

The T153 uses a heterogeneous architecture combining a quad-core Arm Cortex-A7 cluster with a dedicated RISC-V E907 microcontroller. This allows partitioning of workloads, where the Arm cores handle Linux-based applications while the RISC-V core can be used for real-time control, peripheral management, or low-power tasks.

The platform also integrates 128MB DDR3 memory and 256MB SPI NAND flash, with additional storage available via a MicroSD card slot.

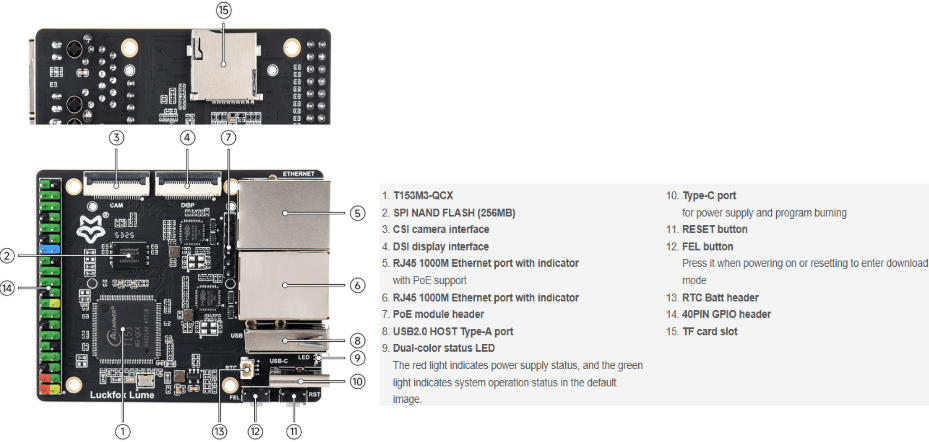

Luckfox Lume peripherals

The board provides a MIPI DSI 4-lane interface for displays and a MIPI CSI 2-lane interface for cameras. The display interface supports resolutions up to 1920 × 1080 at 60 Hz.

Networking is handled through two Gigabit Ethernet ports. One port supports Power over Ethernet when used with an optional PoE module, enabling single-cable power and data configurations.

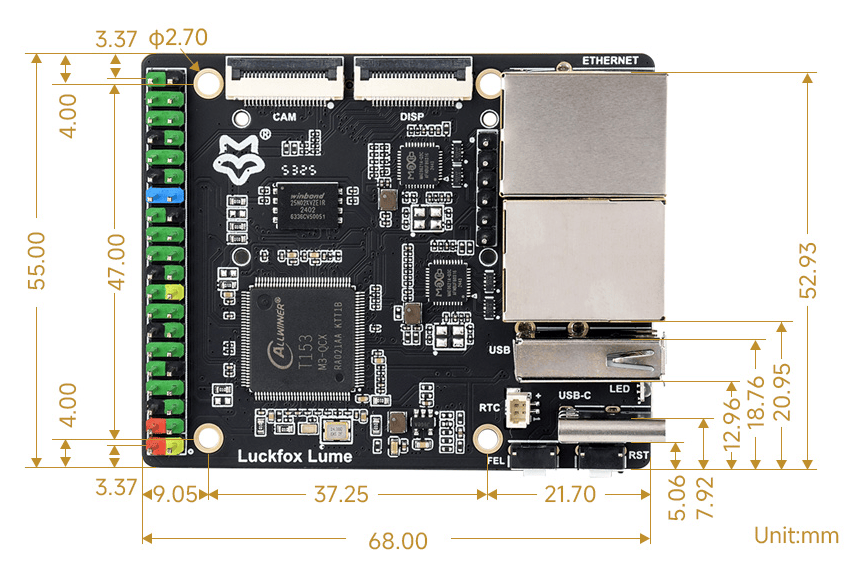

Luckfox Lume dimensions

USB connectivity includes a USB Type-C port for power and programming and a USB 2.0 Type-A host port. A 40-pin GPIO header exposes common interfaces such as UART, SPI, and I2C for expansion.

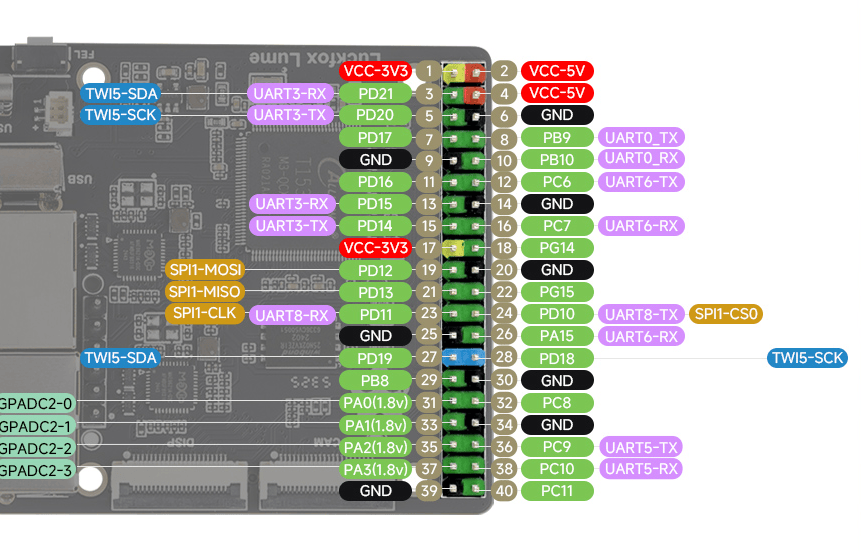

Luckfox Lume pinout

The board measures approximately 68 × 55 mm and includes additional connectors such as an RTC battery header and a PoE module header. Reset and FEL buttons are also available for system control and firmware loading.

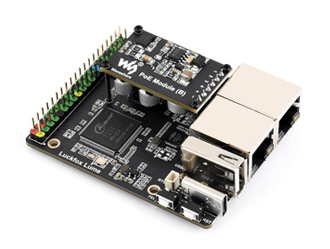

Luckfox Lume + PoE module

Specifications listed for the Luckfox Lume include:

• Processor:
  • Allwinner T153 (quad-core Cortex-A7 + RISC-V E907)
• Memory:
  • 128MB DDR3
• Storage:
  • 256MB SPI NAND flash
  • MicroSD card slot
• Display:
  • MIPI DSI
• Camera:
  • MIPI CSI (2-lane)
• Networking:
  • 2× Gigabit Ethernet
• USB:
  • 1× USB Type-C (power/programming)
  • 1× USB 2.0 Type-A (host)
• I/O Interfaces:
  • 40-pin header
• Other:
  • RTC battery header
  • Reset & FEL buttons
• Power:
  • 5V DC input
• Mechanical:
  • 55 x 68mm

Further Information

The Luckfox Lume is priced at $20.99 for the standard version and $25.99 for the PoE variant through the Luckfox website and distributors such as Waveshare.
