Libre Computer has shared new details on its upcoming Solitude and Alta Compute Modules, designed as pin-compatible alternatives to Raspberry Pi Compute Module 4 (CM4) and Compute Module 5 (CM5) form factors.

The modules are designed for lower power consumption compared to Raspberry Pi CM4 and CM5, with support for low power states and wake events such as Wake-on-LAN, Wake-on-IR/IO/CEC, and Wake-on-Camera/Display. Wireless connectivity is not included on the module, with RF modules intended to be paired via SDIO.

CM5 High-Speed Connector vs. Solitude/Alta (CM5 I/O)
(click image to enlarge)

Hardware differences from CM4 and CM5 include PCM in/out/sync/clock in place of USB 3 TX/RX (with USB 3 and PCIe multiplexed), SDIO in place of HDMI 1, simultaneous eMMC/SD operation with card detection, ARC (Alta) and eARC (Solitude) pins, and line-out audio pins. Other changes include SPI NOR/NAND support, PCIe power and wake control, and modified CSI lane configurations. The CM5 variant also adds a tachometer pin for fan monitoring via UART RX.

CM5 Low-Speed Connector vs. Solitude/Alta (CM5 I/O)
(click image to enlarge)

According to Libre Computer, the modules also feature secondary CEC on HDMI 1, even with a single video output, and can boot EtherealOS for simplified upstream OS deployment.

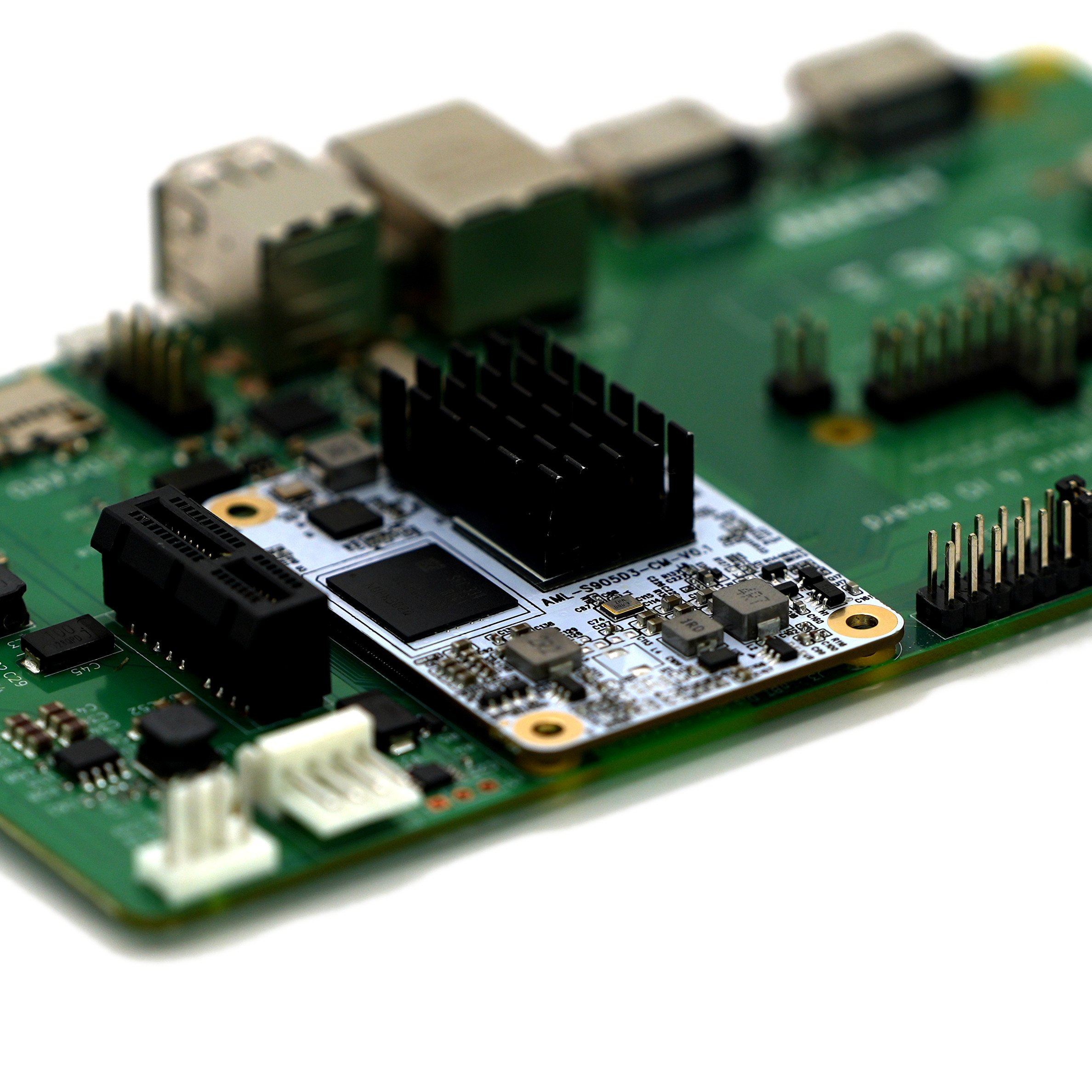

Solitude/Alta Compute Module on RPi CM4 I/O Board
(click image to enlarge)

Further Information

Libre Computer has not yet disclosed specifications for CPU, GPU, or memory configurations, nor has it provided pricing or release timelines for the Solitude and Alta modules. For other hardware details, refer to the Libre Computer Wiki pages.
