Jetway has shared early details of the F35-ARU1, a 3.5-inch subcompact board based on Intel Core Ultra processors from the Arrow Lake-U series. The board integrates CPU, GPU, and NPU resources within a low-power platform intended for embedded and industrial systems.

The system is offered with Intel Core Ultra 5 225U or Core Ultra 7 255U processors, both operating at a 15 W TDP. These processors include an integrated NPU for AI acceleration alongside Intel integrated graphics.

• Core Ultra 5 225U — 12C/14T (2P+8E+2 LP E-cores), up to ~4.8 GHz boost; Intel integrated graphics; integrated NPU; (15W) TDP
• Core Ultra 7 255U — 12C/14T (2P+8E+2 LP E-cores), up to ~5.0 GHz boost; Intel integrated graphics; integrated NPU; (15W) TDP

Memory support includes dual-channel DDR5 running up to 6400 MT/s through two SO-DIMM slots, with capacities up to 128GB. Storage options include a SATA III interface and multiple M.2 slots, including M-key (PCIe 4.0 x4 with NVMe support), B-key, and E-key expansion.

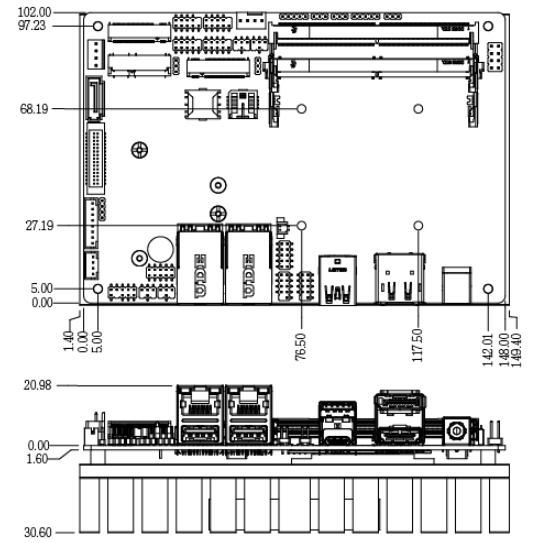

F35-ARU1 dimensions

The board provides dual 2.5GbE Ethernet ports based on Intel I226 controllers, supporting features such as TSN and redundancy. Wireless expansion is supported through the M.2 E-key slot, along with a Nano SIM slot for cellular connectivity.

USB connectivity includes one USB 3.2 Gen 2×2 Type-C port (20 Gbps), three USB 3.2 Gen 2 ports (10 Gbps), and internal headers for four USB 2.0 ports. Additional expansion is available through four RS-232/422/485 serial ports via internal headers.

Display outputs include HDMI 2.0b, DisplayPort 1.4, and USB Type-C with DisplayPort support, enabling up to four independent displays at resolutions up to 4K at 60 Hz. The board also provides LVDS with optional eDP support.

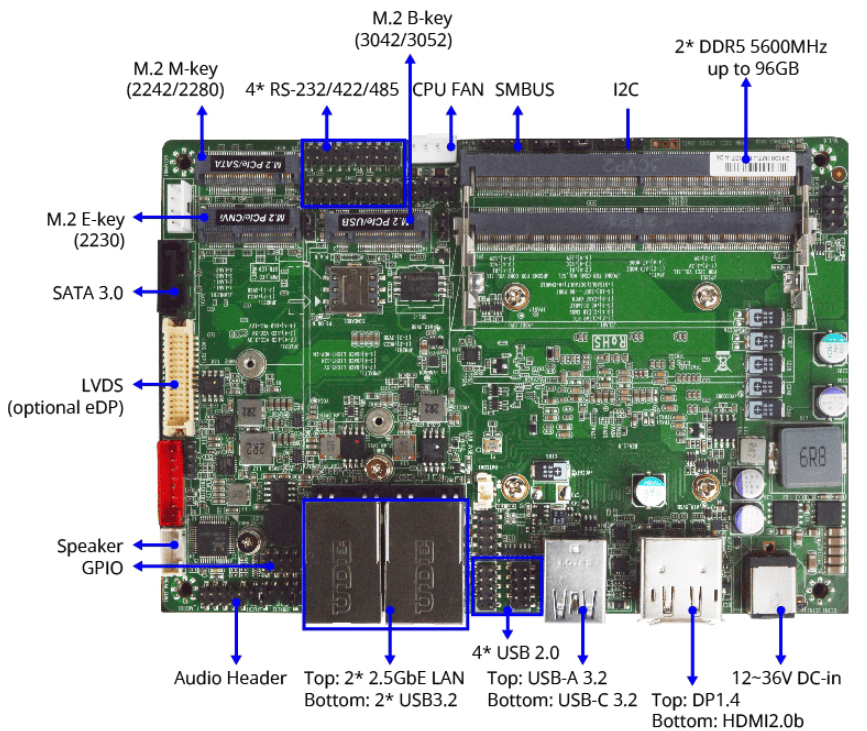

F35-ARU1 peripherals

The F35-ARU1 integrates additional features such as TPM 2.0 (optional), watchdog timer support, GPIO, SMBus, and I2C interfaces. Audio is handled through a Realtek codec with an internal header and a 3 W amplifier.

Power input is provided through a 12–36 V DC range, supporting industrial deployment scenarios. Operating system support includes Windows 10, Windows 11, and Linux.

Specifications listed for the Jetway F35-ARU1 include:

• Memory:
  • 2x DDR5-6400 SO-DIMM (up to 128GB, dual-channel)
• Storage:

  • 1x SATA III
  • 1x M.2 M-Key (PCIe 4.0 x4 / SATA, NVMe support)
  • RAID 0/1 support
• Expansion:
  • 1x M.2 B-Key (PCIe 3.0 x2 / USB 3.2)
  • 1x M.2 E-Key (PCIe 3.0 x1 / USB 2.0, CNVio)
  • 1x Nano SIM slot
• Connectivity:
  • 2x 2.5GbE LAN (Intel I226-V + I226-LM, TSN support)
• Audio:
  • Realtek audio codec
  • Internal audio header
  • 3W amplifier
• Display:
  • 1x HDMI 2.0b (up to 4K @60Hz)
  • 1x DisplayPort 1.4 (up to 4K @60Hz)
  • 1x USB Type-C (DP 1.4, up to 4K @60Hz)
  • 1x LVDS (dual-channel, optional eDP, up to 1920×1200 @60Hz)
• I/O Interfaces:
  • 4x RS-232/422/485 (internal headers)
  • 8-bit GPIO
  • SMBus, I2C
  • 1x CPU fan header (PWM)
  • Front panel header (power/reset/LED)
• USB:
  • 1x USB 3.2 Gen 2×2 Type-C (20Gbps)
  • 3x USB 3.2 Gen 2 (10Gbps)
  • 4x USB 2.0 (internal headers)
• Power:
  • 12–36V DC input
  • AT / ATX mode support
• Other Features:
  • UEFI BIOS
  • Watchdog timer (255 levels)
  • TPM 2.0 (optional)
  • Wake-on-LAN
  • Chassis intrusion detection
• Mechanical:
  • 148 x 102 mm (3.5-inch form factor)
• Operating Temperature:
  • -20°C to 60°C
• Certification:
  • CE, FCC Class A

Further Information

The F35-ARU1 appears to be in an early stage, and availability details and pricing have not yet been announced.
