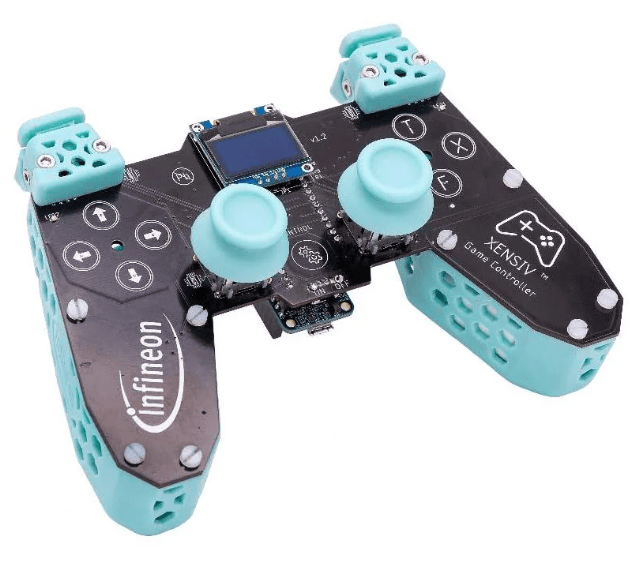

The Infineon XENSIV Game Controller combines XENSIV magnetic position sensors and the PSoC 6 BLE microcontroller to create a precise, low-power, plug-and-play device ideal for gaming and control applications.

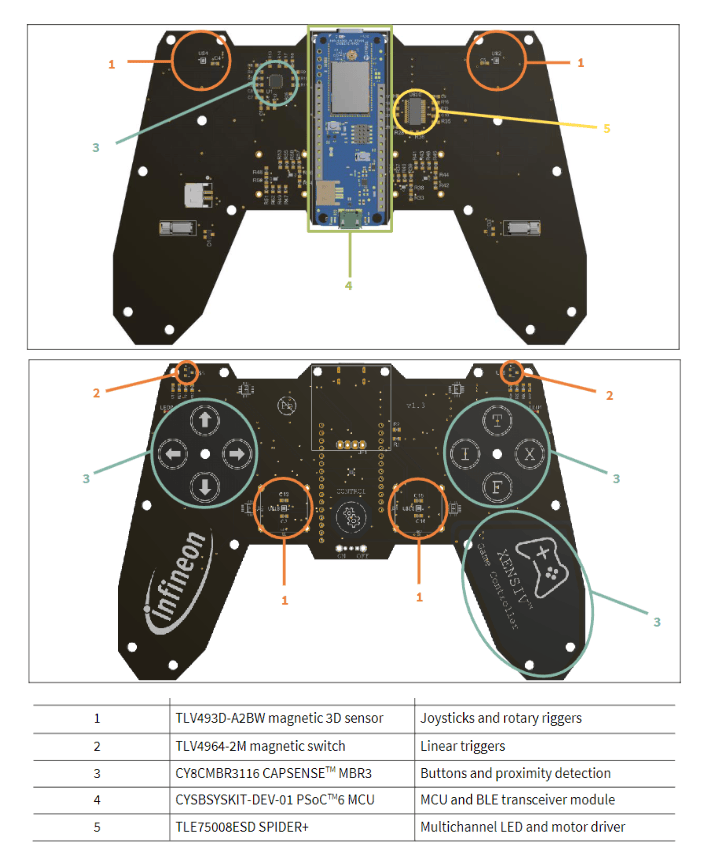

The XENSIV magnetic position sensors provide high accuracy, ensuring the joysticks remain drift-free even after extended use according to the specs. Complementing these are XENSIV Hall switch triggers, capacitive CAPSENSE™ buttons, CAPSENSE presence detection, and a SPIDER+ rumble driver for a more immersive experience.

Upon connection to a PC or smartphone, the XENSIV Game Controller automatically configures itself as a Human Interface Device, eliminating the need for additional drivers or manual setup. The integration of Bluetooth Low Energy, alongside capacitive presence detection, helps conserve battery life by reducing power usage when idle. The PSoC 6 BLE microcontroller supports low-power operation and enables easy software and hardware customization.

Additionally, the onboard PSoC 6 debugger and customizable shield design simplify the integration of various components, allowing users to tailor the controller’s functionality to their specific needs.

An onboard display offers settings and monitoring options, allowing users to track joystick positioning, connection details, configurations, and battery status. Infineon indicates that the controller’s design files are publicly available, encouraging customization of the XENSIV Game Controller for various applications beyond gaming.

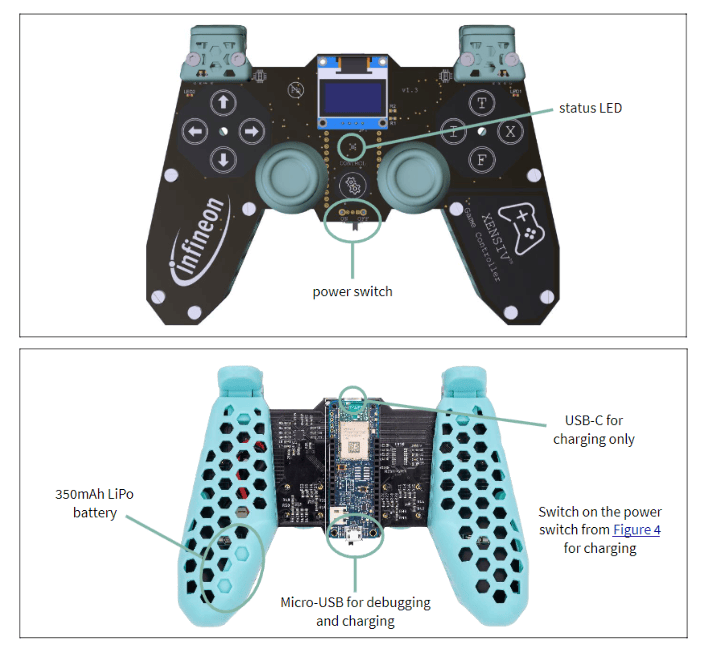

The  XENSIV Game Controller, designed primarily for gaming applications, is versatile enough for controlling industrial machinery. Its compact dimensions (160mm x 120mm x 60mm) make it convenient for diverse use cases. It supports charging via 5V USB, USB-C or micro USB and complies with RoHS standards.

Further information

As of the publication date, units are available from authorized distributors like Mouser for $177.41. For the latest information and full specifications, refer to the Infineon website.
