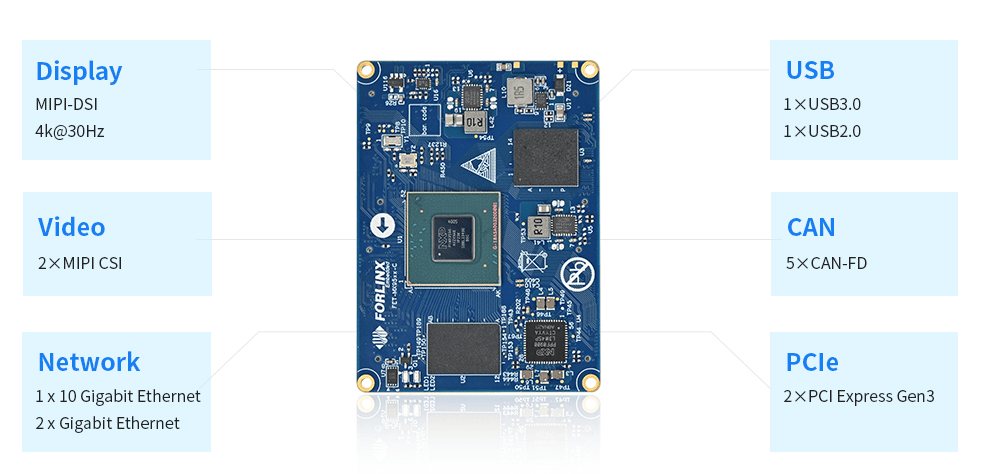

Forlinx Embedded has introduced the FET-MX95xx-C System on Module, built around the high-performance NXP i.MX95xx processor for industrial, automotive, and IoT applications. Key features include a 10GbE port, dual GbE ports, CAN interfaces, camera support, and multiple wireless protocols.

Unlike the FET3562J-C SoM, this new Forlinx device is powered by the NXP i.MX95xx processor. It features six Cortex-A55 cores clocked at 1.8GHz, a Cortex-M7 core at 800MHz, and a Cortex-M33 core at 333MHz, along with 8GB of LPDDR4x RAM, 64GB of eMMC storage, and a 2TOPS NPU.

FET-MX95xx-C Processor Features
(click images to enlarge)

Display and video capabilities are also a highlight, with support for 4K@30fps video through an integrated Image Signal Processor and a Mali-G310 GPU, which supports OpenGL ES 3.2, Vulkan 1.2, and OpenCL 3.0. The module includes MIPI-CSI and MIPI-DSI interfaces, facilitating high-quality video and image processing for camera and display connections.

Its carrier board supports a range of interfaces tailored to diverse application needs. It includes five CAN-FD ports, a 10 Gigabit Ethernet port, dual Gigabit Ethernet, USB 3.0 and USB 2.0 ports, and PCIe Gen3, aimed at high-speed data transfer in industrial environments.

FET-MX95xx-C Other Features
(click images to enlarge)

Additionally, the FET-MX95xx-C offers a broad selection of peripheral interfaces, including JTAG for debugging, multiple UARTs, SPI options, as well as ADC, PWM, and extensive GPIO support, enabling seamless integration with sensors and other peripheral devices.

OK-MX95xx-C Development Board
(click images to enlarge)

The module operates on a Linux-based platform, ensuring compatibility with a wide range of software libraries and development tools. Forlinx also provides support for hardware schematics and firmware resources to assist with development.

Specifications listed for the OK-MX95xx-C development board include:

• Memory/Storage:
  • Up to 8GB LPDDR4X
    Up to 64GB eMMC
  • 1x MicroSD card slot
• Display:
  • 1x MIPI-DSI connector
  • 1x LVDS connector
• Camera:
  • 1x OV13850 MIPI connector
• Audio:
  • 1x Speaker, 1x MIC
• Connectivity:
  • 2x GbE RJ45 ports  w/ TSN support
  • 1x XFI-10G connector w/ TSN support
  • On-board AW-CM358SM (2.4G/5G dual-band Wi-Fi)
• Expansion:
  • Mini PCIe slot for 4G
  • 2x PCIe 3.0 x1
• I/O Interfaces:
  • 8x UART (Up to 5Mbps)
  • 8x SAR ADC
  • 8x SPI, 1x XSPI
  • 5x CAN FD
  • 2x RS485
• USB:
  • 3x USB 2.0 ports
  • 1x USB Type-C
• Other Features:
  • 4-pin (JTAG)
  • CR2032 RTC connector
  • 1x Fan connector
  • 4x User LEDs
  • 1x Buzzer
• Operating Temperature:
  • -40℃ to 85℃
• Power:
  • 12V DC
• Mechanical:
  • 50mm x 68mm (SoM)
  • B2B connector

Further information

Pricing details for the FET-MX95xx-C SoM and its carrier board have not been disclosed. For further information, refer to the product page on Forlinx’s website.
