This device features the same Espressif Systems processor and comes in a similar form-factor as the T-Display S3 Pro covered in September.

• ESP32-S3R8 — Dual-core Xtensa LX7 (up to 240 MHz); 8M PSRAM, 16MB Flash

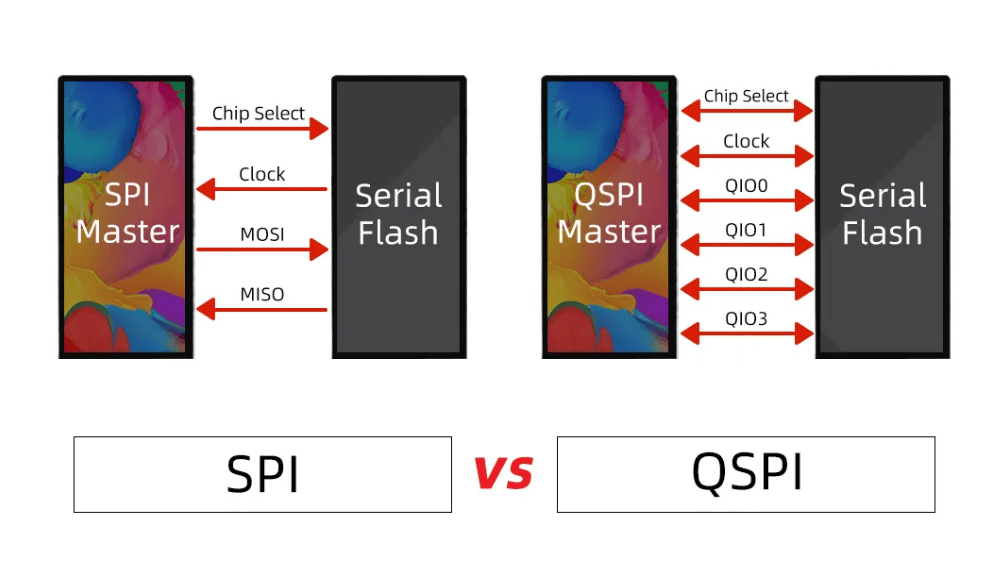

T-Display-S3 AMOLED QSPI interface
(click image to enlarge)

This T-Display-S3 variant features a 1.91” RM67162 IPS AMOLED screen with a high-resolution 240 x 536 display along with a 19.8 x 44.22mm active area. Equipped with the RM67162 driver IC and an IPS full view angle, this display offers high visibility from multiple angles according to LILYGO.

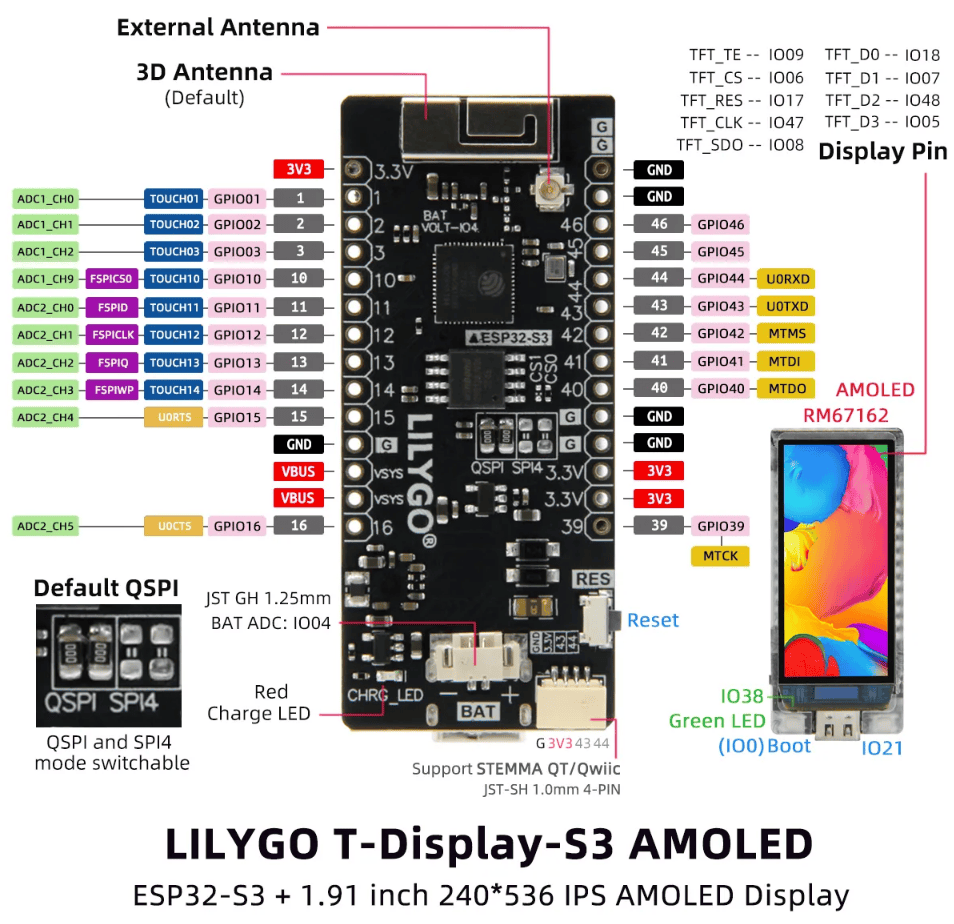

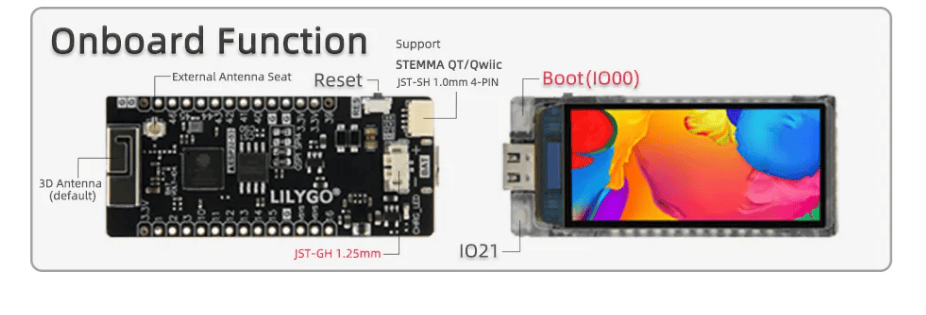

T-Display-S3 AMOLED peripherals
(click images to enlarge)

In contrast to the T-Display S3 Pro with a built-in camera, the AMOLED version offers extensive connectivity with up to 28 I/O pins and a Qwicc connector, facilitating seamless integration of sensors and peripherals.

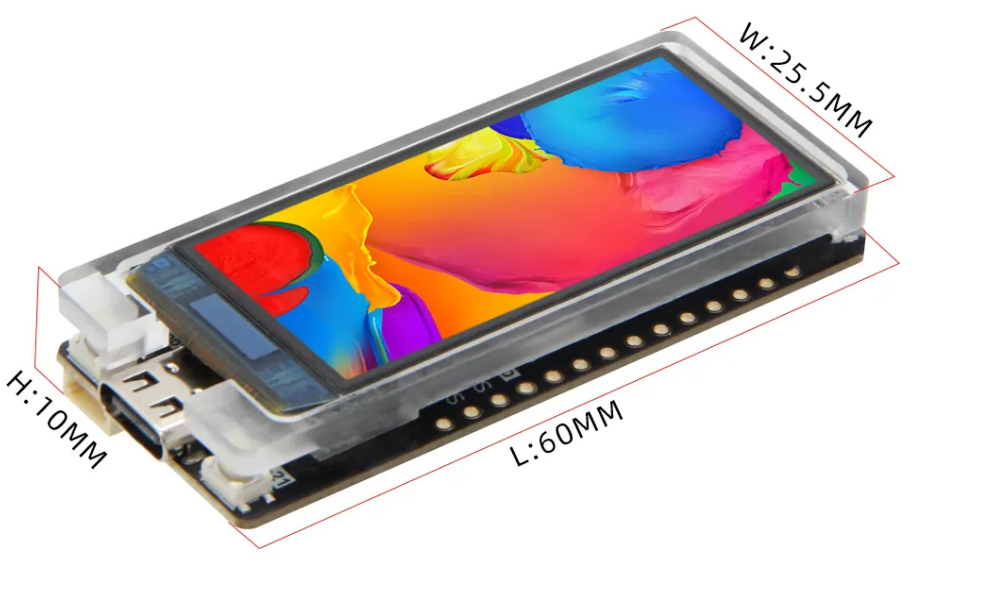

T-Display-S3 AMOLED dimensions
(click image to enlarge)

For data transfer and power, the board is equipped with a USB Type-C as shown below. Refer to the LILYGO GitHub for additional technical documentation and examples.

Specifications listed for the T-Display-S3 AMOLED include:

• Memory/Storage:
  •  16 MB Flash
  • 8MB PSRAM
• Display:
  • 1.91” RM67162 IPS AMOLED
• Connectivity:
  • 2.4GHz Wi-Fi & Bluetooth 5 LE
  • 3D antenna (default) & external antenna connector
• I/O Interface:
  • 28x I/Os
  • 1x Qwiic connector
  • 1x Red LED
• USB:
  • 1x USB Type-C
• Other Features:
  • 1x Boot button, 1x Reset button
  • 1x User button
• Power:
  • 1x Battery connector
• Mechanical:
  • 25.5 x 60 x 10mm

Further information

The T-Display-S3-AMOLED is available for purchase through multiple platforms. Customers can find it on Amazon for $31.00, on AliExpress for $34.98, and on the LILYGO official store for $25.68. LILYGO also recently provided a demo of this product on their Twitter
