CM4 based computer supports PoE and RTC

Apr 15, 2023 — by Giorgio Mendoza 457 views

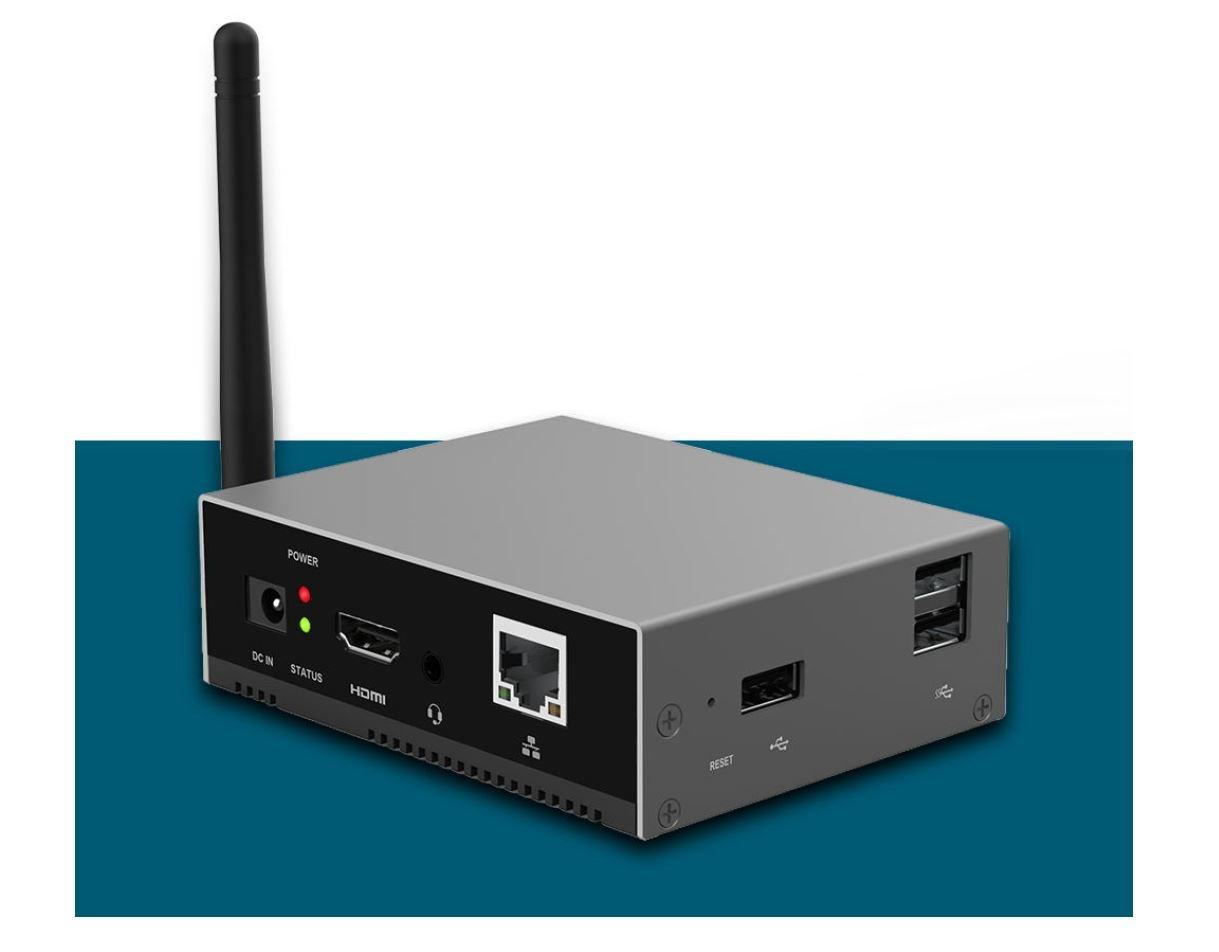

EDATEC revealed yesterday a small embedded device with support for the Raspberry Pi CM4. The ED-IPC2010 comes in an aluminum alloy case and it includes an onboard encryption chip.

The EDATEC is another industrial-grade device based on the Raspberry Pi CM4 similar to the IGN800 from Onlogic seen last year.



  • Broadcom BCM2711 — Quad-core  64-bit Arm Cortex-A72 (up to 1.5GHz)

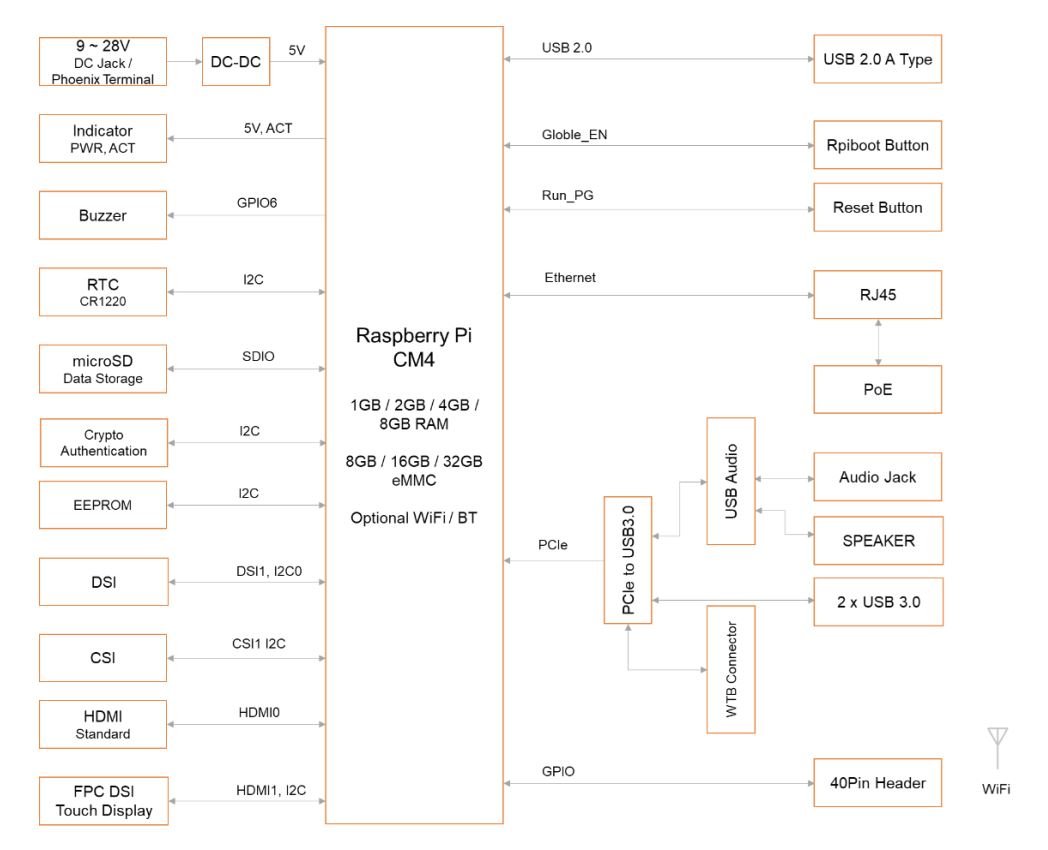

ED-IPC2010 block-diagram
(click image to enlarge)

The industrial device can be configured with 1GB/2GB/4GB/8GB RAM and 8GB/16GB/32 eMMC storage. Additionally, Edatec offers the CM4 variant with or without Wi-Fi/BT connectivity.

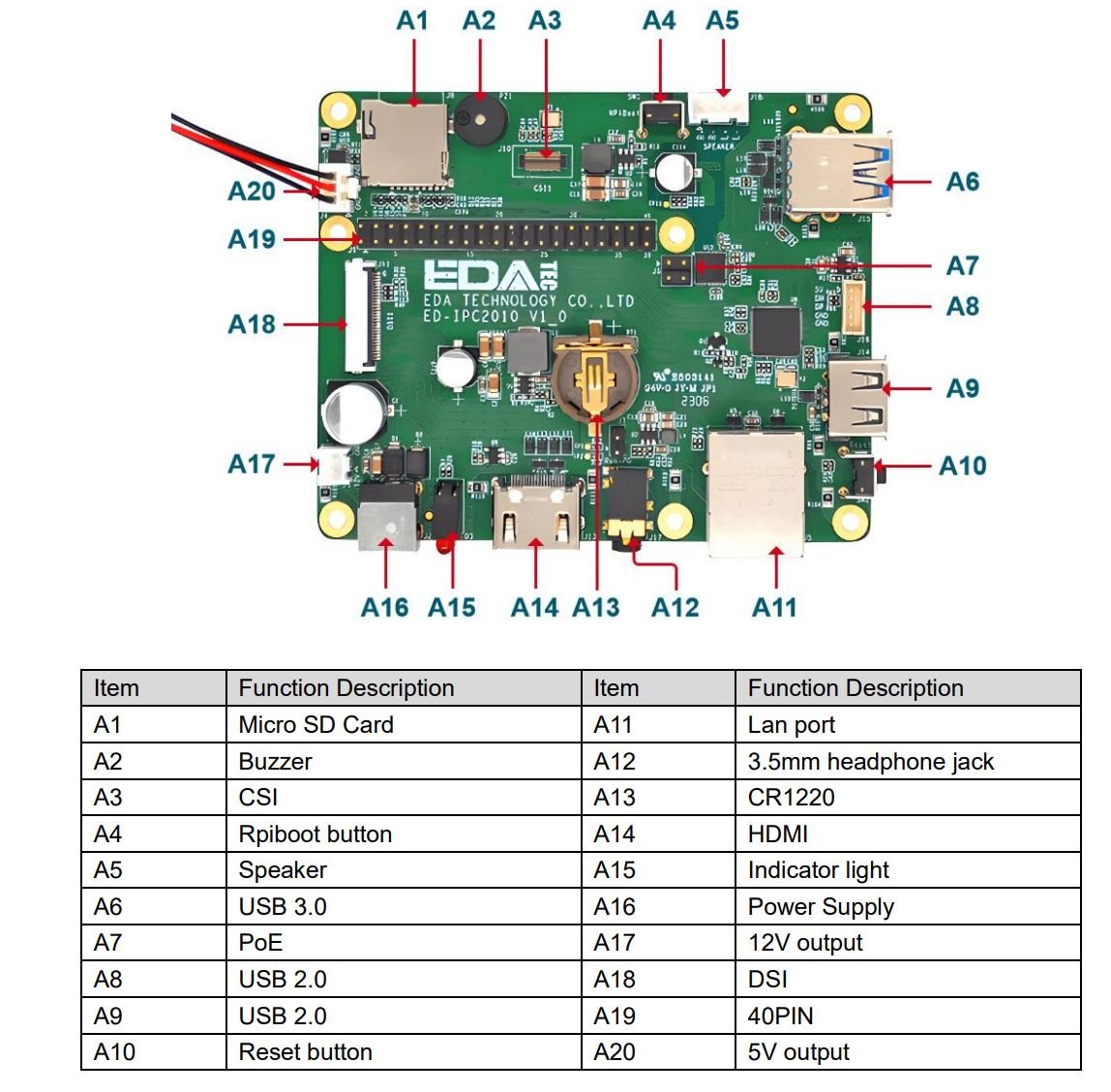

ED-IPC2010 peripherals
(click images to enlarge)

The carrier board provides access to most of the interfaces found on a Raspberry Pi 4 SBC. The ED-IPC2010 also features 1x buzzer, 1x speaker, 1x RTC, 2x Status LEDs, 1x 12V output connector, 1x 5V output connector and 1x 4-pin PoE connector.

The ED-IPC2010 integrates a secure element (Microchip ATECC608A) with ECDH (Elliptic Curve Diffie Hellman) and ECDSA (Elliptic Curve Digital Signature Algorithm).

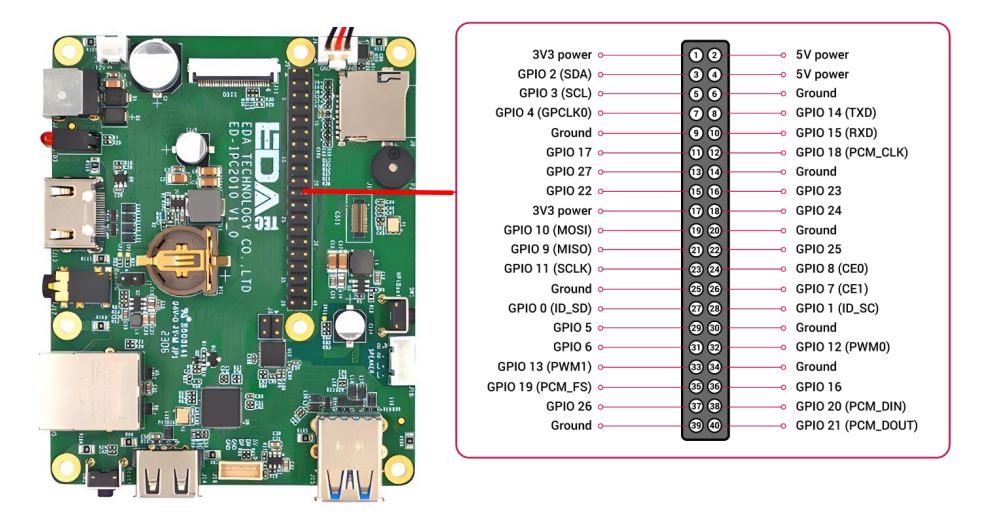

ED-IPC2010 40-pin GPIOs (left) and side view (right)
(click images to enlarge)

The EDATEC Document Center currently provides a datasheet and User manual related to this product. The manual indicates that this product “is compatible with official Raspberry PI images, but users are required to install EDATEC BSP to use its unique functions (i.e. RTC).”

Specifications listed for the ED-IPC2010:

  • Memory/Storage:
    • Up to 8GB LPDDR4
    • Up to 32GB eMMC
    • 1x MicroSD card slot
  • Camera:
    • 1x CSI connector
  • Display/Audio:
    • 1x HDMI Type-A
    • 1x HDMI FPC port (1x HDMI + 1x USB touch)
    • 1x DSI port
    • 1x 3.5mm Audio jack
    • 1x Speaker interface
  • Connectivity:
    • 1x GbE RJ45 port w/ PoE support
    • 2.4G/5.8G WiFi
    • Bluetooth BLE 5.0
  • I/O Interfaces:
    • 40-pin expansion header
  • USB:
    • 1x USB 2.0 port
    • 2x USB 3.0 port
  • Security:
    • Onboard encryption chip
  • Other Features:
    • 1x Reset button, 1x Boot button
    • 1x Buzzer, 2x Indicator LEDs
    • RTC
  • Power:
    • 9 ~ 28V DC (optional Phoenix terminal)
    • 5V/1A line-to-board connector output
    • 12V/1A line-to-board connector output
  • Operating Temperature:
    • -25℃ to 60℃
  • Mechanical:
    • 103 × 80 x 35mm
    • Aluminum alloy case

Further information

EDATEC didn’t provide information about pricing, but the ED-IPC2010 product page can be found here.
