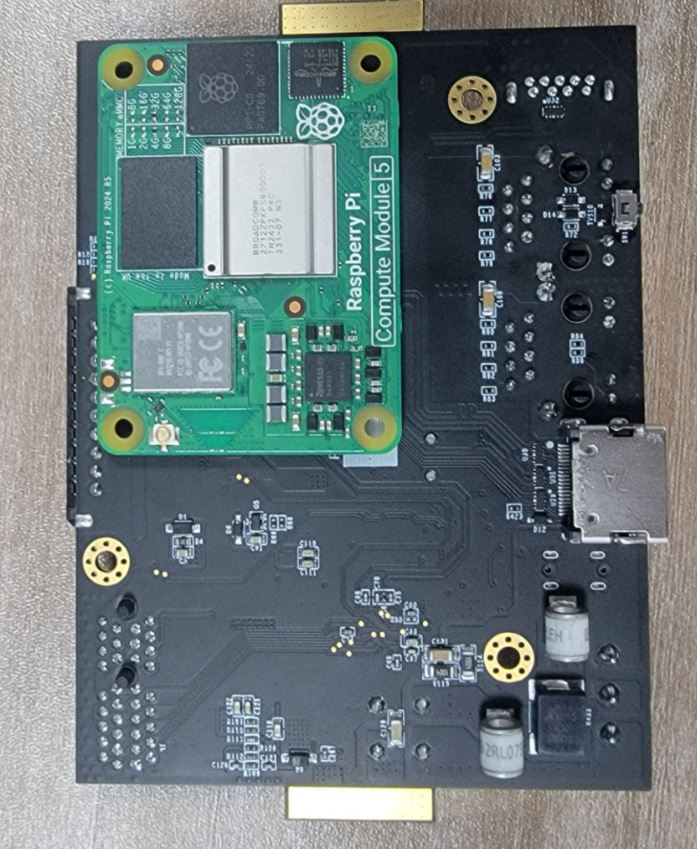

The EdgeLogix-1145 is a rugged industrial controller that integrates edge computing, PLC functionality, and IIoT gateway capabilities. Designed around the Raspberry Pi CM5, it offers a compact, fanless platform designed for automation tasks in harsh environments such as factories, energy systems, and smart infrastructure.

The system is built on the Broadcom BCM2712 SoC, a quad-core Cortex-A76 processor running at 2.4GHz. Configuration options include up to 8GB of LPDDR4 RAM and 32GB of eMMC flash storage. An M.2 slot allows for the addition of NVMe SSDs to expand local storage.

The controller supports both wired and wireless networking. It features two RJ45 Gigabit Ethernet ports and built-in support for dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0, and optional Mini-PCIe modules for 4G LTE or LoRaWAN. These options enable integration with cloud services such as AWS and Microsoft Azure, as noted in the product page.

I/O capabilities include 8 digital inputs, 8 digital outputs, 4 analog inputs (default 0–20 mA, optional 0–10 V), and 4 analog outputs (0–5 V). Additional interfaces include RS232, two RS485 ports, USB 2.0, and HDMI 2.0 for external display support.

The device supports common industrial protocols and standards, including Modbus, OPC UA, TCP/IP, and IEC 61131-3. It is compatible with software platforms such as Codesys, Node-RED, N3uron, Balena, and Ignition.

Designed for DIN rail or wall mounting, the EdgeLogix-1145 features a thermally housing made from aluminum and plastic. It operates in ambient temperatures ranging from -20 °C to 60 °C. Optional features include a built-in UPS with supercapacitor for safe shutdown and an ATECC608A encryption chip for secure deployments.

Further Information

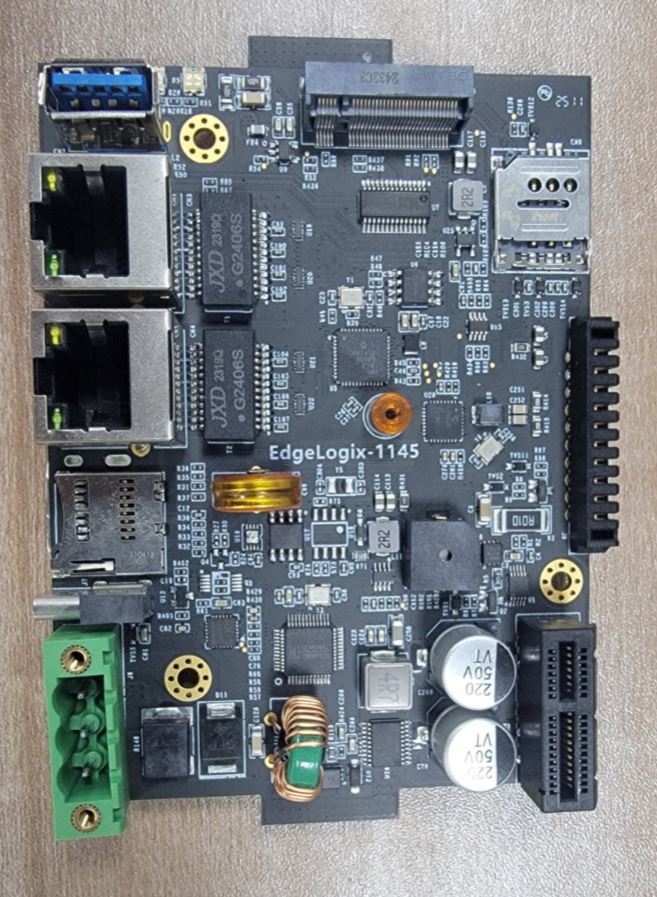

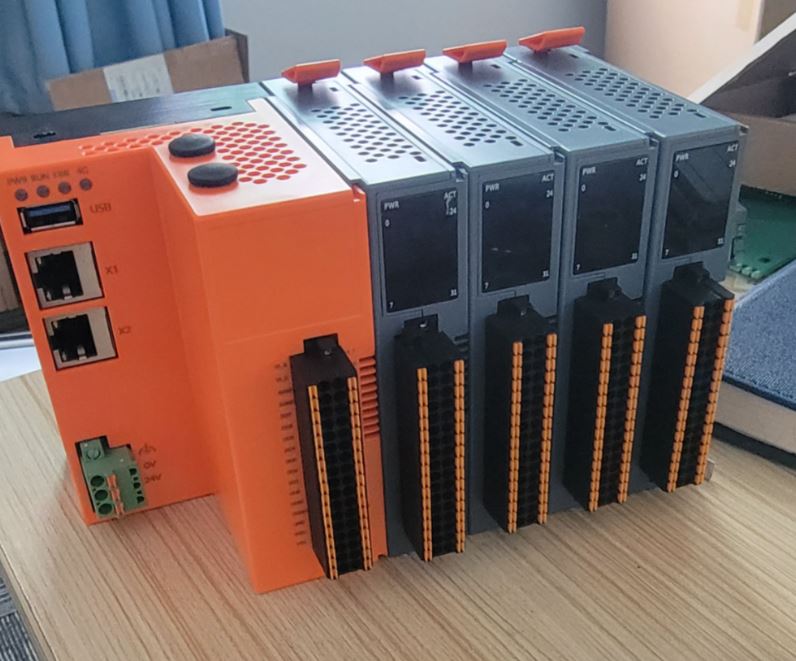

The EdgeLogix-1145 is listed on Alibaba at a price of $289.00. While the product page primarily features rendered images, OpenEmbed recently shared real-world photos of the unit on Twitter, offering a clearer look at its hardware layout.
