DEBIX expands its SBC lineup with Model D and R3576-01 boards
May 31, 2026 — by Giorgio Mendoza 759 views
DEBIX has expanded its single-board computer lineup with the DEBIX Model D and DEBIX R3576-01, two Arm-based platforms targeting different embedded and industrial applications. The Model D is built around NXP’s power-efficient i.MX9131 processor, while the R3576-01 uses Rockchip’s RK3576 octa-core SoC with an integrated NPU for machine learning workloads.
The DEBIX Model D is based on the NXP i.MX9131, an entry-level processor in the i.MX 91 family, featuring a single Arm Cortex-A55 core operating at up to 1.4 GHz and a specified maximum power consumption of 1.24 W.
— ADVERTISEMENT —
The board is aimed at low-power edge and IoT deployments. It is available with 1GB or 2GB LPDDR4X memory and supports optional eMMC storage up to 256GB.

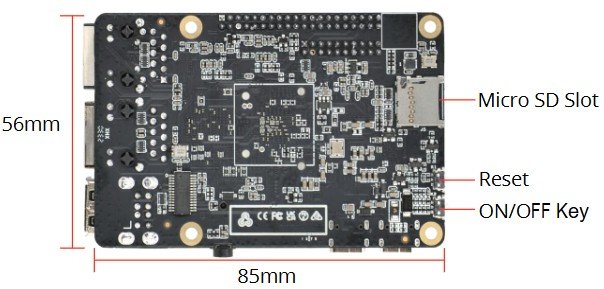

DEBIX Model D bottom view
Networking features include dual Gigabit Ethernet ports, one supporting TSN and optional PoE, together with 2.4 GHz and 5 GHz Wi-Fi and Bluetooth 5.2.
Additional connectivity is provided through two USB 2.0 host ports, a USB 2.0 OTG port, a 40-pin expansion header, and a microSD card slot.

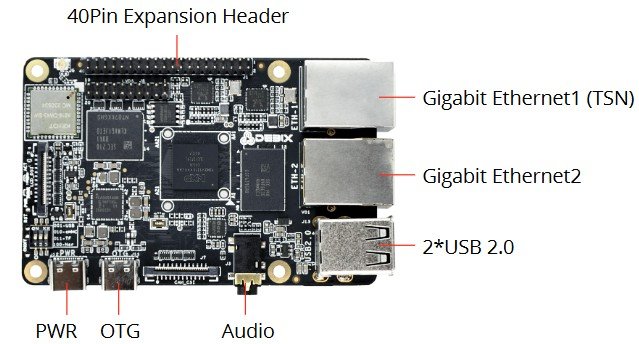

DEBIX Model D top view
For applications requiring higher compute performance, DEBIX also offers the R3576-01 SBC based on the Rockchip RK3576 processor.
The SoC combines four Cortex-A72 cores running at up to 2.2 GHz with four Cortex-A53 cores operating at up to 2.0 GHz, alongside a Cortex-M0 microcontroller for real-time tasks. The platform supports up to 8GB LPDDR4 memory.

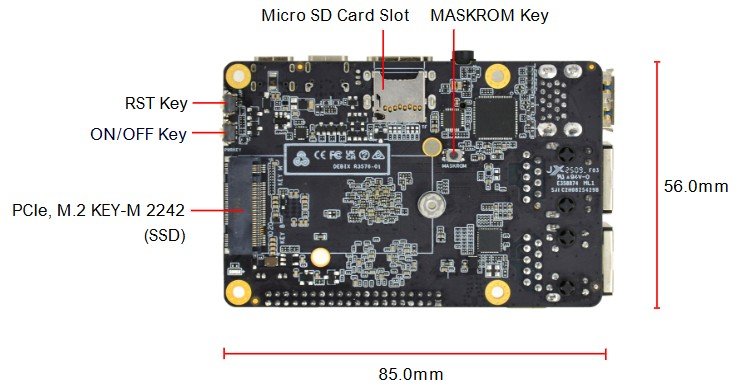

DEBIX R3576-01 bottom view
A key feature of the R3576-01 is its integrated NPU capable of delivering up to 6 TOPS for machine learning workloads.
The board also includes a Mali-G52 MC3 GPU, dual Gigabit Ethernet ports with optional PoE support, Wi-Fi 6, Bluetooth 5.0, HDMI output supporting up to 4K at 120 Hz, MIPI CSI and DSI interfaces, USB 3.0 connectivity, and an M.2 Key-M slot for NVMe SSD storage.

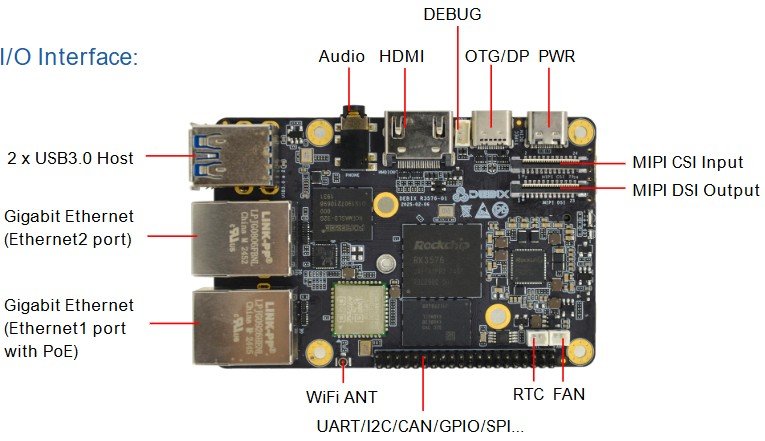

DEBIX R3576-01 top view
In terms of software support, DEBIX lists Yocto and Zephyr for the Model D, while the R3576-01 supports Android 14, Debian 12, and Ubuntu 22.04 Server.
Specifications listed for the DEBIX Model D and DEBIX R3576-01:
| Feature | DEBIX Model D | DEBIX R3576-01 |
|---|---|---|
| Processor | NXP i.MX9131, 1× Arm Cortex-A55 @ 1.4GHz | Rockchip RK3576, 4× Cortex-A72 up to 2.2GHz + 4× Cortex-A53 up to 2.0GHz + Cortex-M0 MCU @ 400MHz |
| AI / Graphics | Not specified | 6 TOPS NPU, Mali-G52 MC3 GPU |
| Memory | 1GB LPDDR4X, 2GB optional | 2GB LPDDR4, 4GB / 8GB optional |
| Storage | Default microSD card; optional onboard eMMC up to 256GB | Default 32GB eMMC, optional 8GB / 16GB / 64GB / 128GB / 256GB; microSD slot; M.2 Key-M 2242 SSD slot |
| Display / Camera | No display output listed | HDMI up to 4K @ 120Hz; USB-C DP with MST; MIPI CSI; MIPI DSI up to 4K @ 120Hz |
| Networking | 2× Gigabit Ethernet, one with TSN and optional PoE; 2.4/5GHz Wi-Fi; Bluetooth 5.2 | 2× Gigabit Ethernet, one with optional PoE; Wi-Fi 6; Bluetooth 5.0; external Wi-Fi antenna connector |
| USB | 2× USB 2.0 host; 1× USB 2.0 OTG | 2× USB 3.0 host; 1× USB 2.0 Type-C power input; 1× USB 3.0 OTG + DP over USB-C |
| Expansion | 40-pin expansion header with I2C, UART, GPIO, PWM, SPI, CAN, ADC, and power pins | 40-pin expansion header with UART, SPI, I2C, CAN, GPIO, I2S, PWM, SPDIF, and power pins; M.2 Key-M 2242 PCIe slot |
| Audio | Headphone and microphone combo port | 3.5mm headphone and microphone combo port |
| OS Support | Yocto, Zephyr | Android 14, Debian 12, Ubuntu 22.04 Server |
| Power | 5V/2A USB-C input; maximum power consumption listed as 1.24W | 5V/3A USB-C input |
| Operating Temperature | -20°C to 70°C; -40°C to 85°C optional | 0°C to 70°C |
| Mechanical | 85 × 56 mm; 43g | 85 × 56 mm; 48g |
| Price | $55.99 | $165.00 |
Further Information
The DEBIX Model D starts at $55.99 for the 1GB RAM variant and is currently available for pre-order, with estimated shipping listed for June 2026.
The DEBIX R3576-01 is priced at $165.00 for a configuration with 4GB RAM and 32GB eMMC storage, and is listed as in stock on the company’s website.
