The ASUS IoT EBS-P300 is a compact, lightweight embedded computer designed for industrial applications. It features an Intel Celeron J6412 processor and is optimized for use in harsh environments, with reliable performance across a temperature range of -20°C to 60°C.

The EBS-P300 supports up to 8GB of LPDDR4x-3733 RAM, providing capacity for running multiple applications. It includes an M.2 2242 B-Key slot that accommodates either eMMC storage up to 128GB or SATA storage, along with an M.2 2230 E-Key slot for Wi-Fi or Bluetooth devices.

• Celeron-J6412 —  4C/4T, 2.0 – 2.6 GHz, 1.5 MB L2 Cache (10W TDP); Intel UHD Graphics for 10th Gen (up to 800 MHz), 16 Execution Units

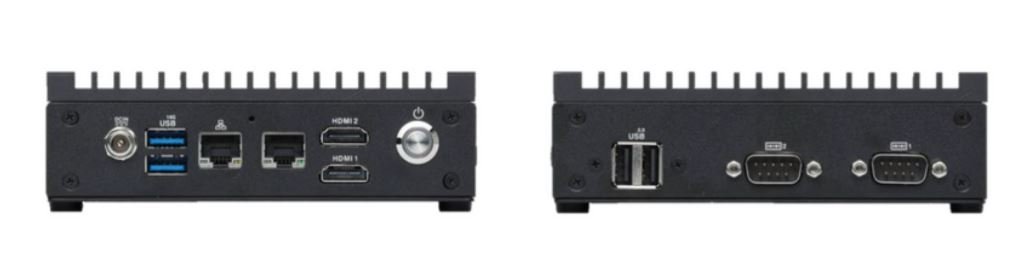

EBS-P300 interfaces
(click image to enlarge)

The device offers diverse connectivity, including one 2.5GbE Ethernet port, one 1GbE Ethernet port, two USB 3.2 ports, and two COM ports (RS-232/422/485). It also features two HDMI ports (one HDMI 2.0 and one HDMI 1.4) for flexible display options.

Designed for challenging conditions, the EBS-P300 has a fanless, compact form factor measuring 137mm x 81mm x 40mm and is capable of operating reliably in temperatures from -20°C to 60°C and humidity levels of 10-95% at 40°C. Its robust construction and options for DIN-rail or wall mounting make it suitable for various industrial installations.

ASUS IoT EBS-P300
(click image to enlarge)

The device integrates TPM 2.0 (Infineon SLB 96xx) for enhanced security of sensitive data and applications. It supports multiple operating systems, including Windows 10 64-bit, Windows IoT Enterprise, Ubuntu, RedHat Enterprise, Fedora Workstation, and OpenSUSE. Additional functionality is provided by the ASUS IoT Suite, which includes tools for hardware monitoring, power scheduling, fan control, and a watchdog timer.

Specifications listed for the Asus EBS-P300 include:

• Memory:
  • Up to 8 GB LPDDR4x-3733 (one SODIMM slot)
• Display/Audio:
  • 1x HDMI 2.0 port
  • 1x HDMI 1.4 port
• Expansion:
  • 1x M.2 2230 E-Key for Wi-Fi/BT device
  • 1x M.2 2242 B-Key supports SATA storage
• Connectivity:
  • 1x Gigabit Ethernet port by Intel I226-IT
  • 1x Gigabit Ethernet port by Intel I210-IT
• I/O Interfaces:
  • 2x COM: RS-232/422/485 port
• USB:
  • 2x USB 3.2 ports
• Other Features:
  • TPM 2.0
• Operating Temperature:
  • -20° to 60°C
• Power:
  • 12 – 24V DC
• Mechanical:
  • 137 x 81 x 40mm
  • DIN-Rail
  • Wall-mount

Further information

The EBS-P300 is available for purchase at $413.00 on the ASUS online store.
