ASRock Industrial has announced the NUC(S) Ultra 200 BOX and Motherboard Series, powered by Intel Core Ultra 200H processors (Arrow Lake-H), offering up to 99 TOPS of AI inferencing for advanced computing applications.

The NUC(S) Ultra 200 BOX Series integrates Intel’s hybrid performance architecture with Intel Arc GPUs and NPUs, offering a multitasking platform for AI-intensive workloads, data processing, and multimedia applications.

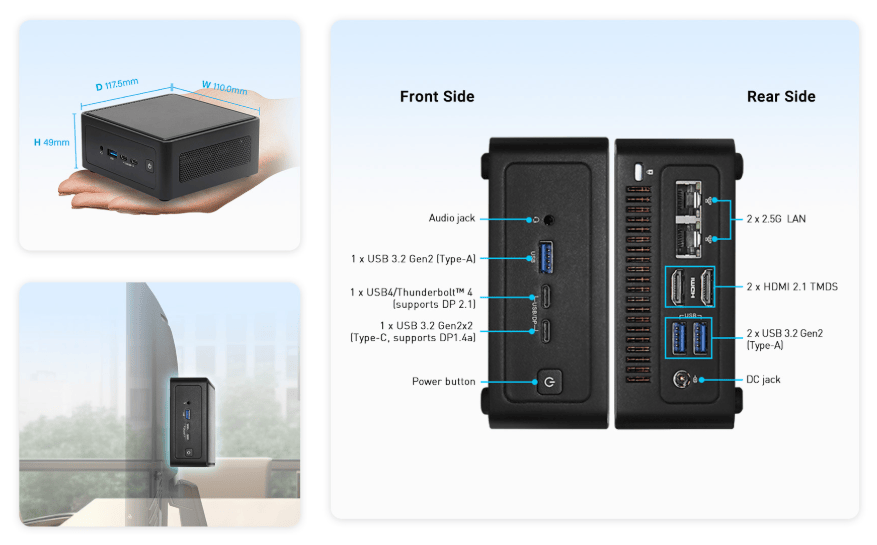

NUC BOX-225H peripherals
(click image to enlarge)

Despite its compact design, the series supports high-performance features such as DDR5 memory and versatile storage configurations, including SATA 3.0 or M.2 2280 slots with Intel VMD RAID 0/1, depending on the model.

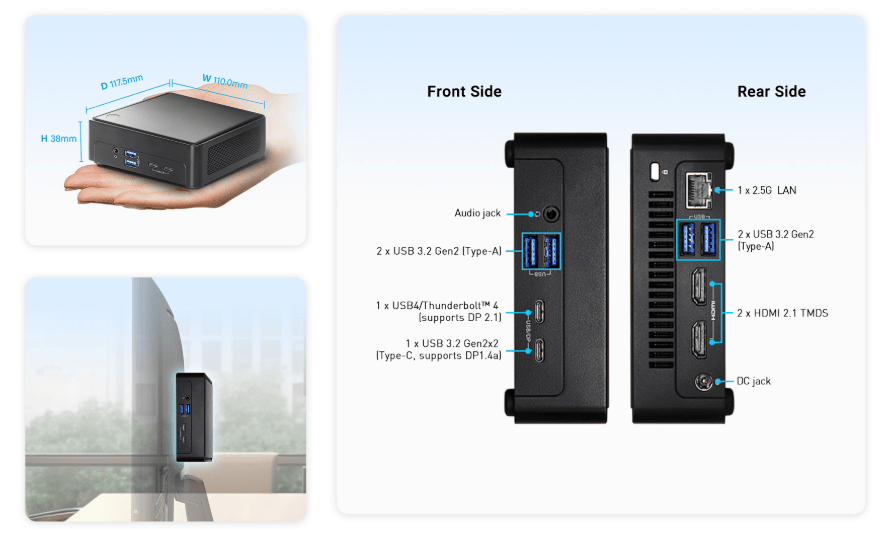

NUCS BOX-255H peripherals
(click image to enlarge)

Display capabilities include support for up to four 4K screens, enabling multi-display setups suited for professional environments. With USB4/Thunderbolt 4, Wi-Fi 6E, and dual 2.5 Gigabit LAN ports in select models.

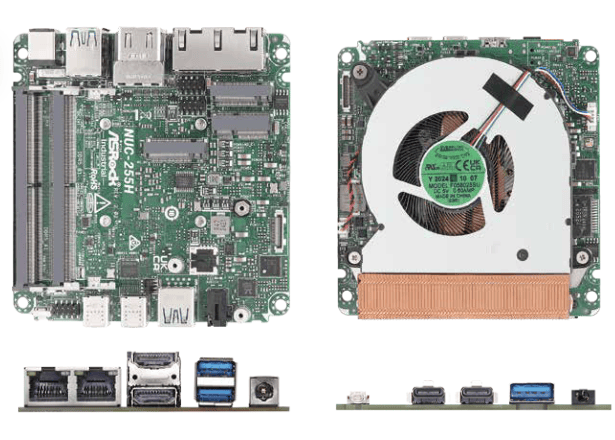

NUC-255H
(click images to enlarge)

The NUC Ultra 200 Motherboard Series complements the BOX lineup, featuring dual 2.5 Gigabit LAN ports, quad 4K display outputs, and a range of I/O options tailored for embedded and industrial applications. Support for DDR5 memory, PCIe Gen4 storage, and a wide operating temperature range enhances its reliability for diverse use cases.

 NUC(S) Ultra 200 BOX Series
(click image to enlarge)

Specifications listed for the NUC-255H:

•  Memory:
  • 2x 262-pin CSO-DIMM DDR5 6400MHz (Up to 96GB, 48GB per DIMM)
• Display:
  • 2x HDMI 2.1 TMDS
  • 1x DP 2.1 (from USB4)
  • 1x DP 1.4a (from Type-C)
• Audio:
  • Realtek ALC256, High Definition Audio
  • Headphone & Mic Jack
• Connectivity:
  • 2x 2.5 Gigabit LAN
• Expansion:
  • 1x M.2 (Key M, 2280) w/ PCIe Gen4 x4 for SSD
  • 1x M.2 (Key M, 2242) w/ PCIe Gen4 x4 for SSD
  • 1x SATA 3.0 (6.0 Gb/s)
• I/O Interfaces:
  • 1x COM (RS-232/RS-422/RS-485)
• USB:
  • 1x USB4/Thunderbolt 4
  • 4x USB3.2 Gen2
  • 2x USB 2.0
• Other Features:
  • Intel PTT (TPM)
  • WDT
• Operating Temperature:
  • -20ºC ~ 70ºC
• Power:
  • 12V to 24V (via DC-In Jack)
• Mechanical:
  • VESA mount
  • 10.4 cm x 10.2 cm x 3.8 cm

Further information

ASRock Industrial has not disclosed pricing details, but product pages and the official product announcement are available online.
