ASRock Industrial has introduced the 4X4 BOX AI300 Series, a compact system built around AMD’s Ryzen AI 300 Series processors. This fanned system includes features such as 2.5GbE and 1GbE ports, support for four displays, and flexible storage options.

The 4X4 BOX AI300 Series incorporates AMD Ryzen AI 7 350 and Ryzen AI 5 340 processors, which utilize Zen 5 CPU architecture, AMD XDNA 2 NPU, and Radeon 800M graphics to deliver up to 50 TOPS of AI processing power, enabling features such as Copilot+ PC.

• AMD Ryzen AI 7 350 — 8C/16T, (2.00 – 5.00GHz); 8MB L2 Cache, 16MB L3 Cache; Radeon 860M, 8 Graphics Core Count (up to 3000MHz); TDP: 15-54W
• AMD Ryzen AI 5 340 — 6C/12T, (2.00 – 4.80GHz); 6MB L2 Cache, 16MB L3 Cache; Radeon 840M, 4 Graphics Core Count (up to 2900MHz); TDP: 15-54W

The system supports up to 96GB of dual-channel DDR5 5600MHz memory, and storage options include two M.2 slots: one supports Key M (2242/2280), and the other supports Key M (2242) with PCIe Gen4x4 compatibility.

The 4X4 BOX AI300 Series supports up to four simultaneous displays, utilizing dual HDMI 2.1 and dual DisplayPort 1.4a outputs. Resolutions of up to 8K are supported, making the system applicable for use cases such as gaming, multi-monitor setups, digital signage, and other high-resolution visual applications.

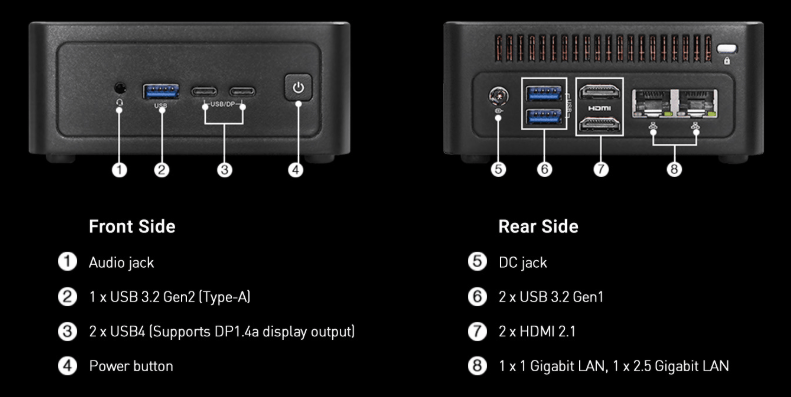

Connectivity in the series includes dual LAN ports, one 2.5G and one 1G, as well as Wi-Fi 6E and Bluetooth 5.2 for wireless communication. The system also provides two USB4 ports, one USB 3.2 Gen2 Type A, and two USB 3.2 Gen1 Type A ports.

Both models in the series, the 4X4 BOX-AI350 and 4X4 BOX-AI340, share a compact form factor, measuring 117.5 x 110.0 x 49mm, with support for VESA mounting. The choice between these models depends on processing requirements.

The AI350 delivers higher clock speeds and more cores for performance-intensive tasks, while the AI340 provides an energy-efficient alternative with fewer cores and slightly lower clock speeds.

Further information

The product pages for the 4X4 BOX-AI350 and 4X4 BOX-AI340 are available, along with the official product announcement.
