The MXM-ACMA-PUC is an industrial edge computing system from AAEON that combines 13th Generation Intel Core processors with an embedded Intel Arc GPU. It is designed for machine learning and AI workloads, with applications in smart city infrastructure and industrial workstation management.

The system supports a range of Intel Core processors, with the default configuration featuring the Intel Core i7-13700TE. This processor has 16 cores and 24 threads with a thermal design power of 35W. The embedded MXM-ACMA module provides additional computational capabilities with GPU options including the Intel Arc A370E and Intel Arc A350E.

• i7-13700TE — 16C/24T (8P+ 8E), (Up to 4.80GHz); 30 MB Smart Cache, 35W TDP

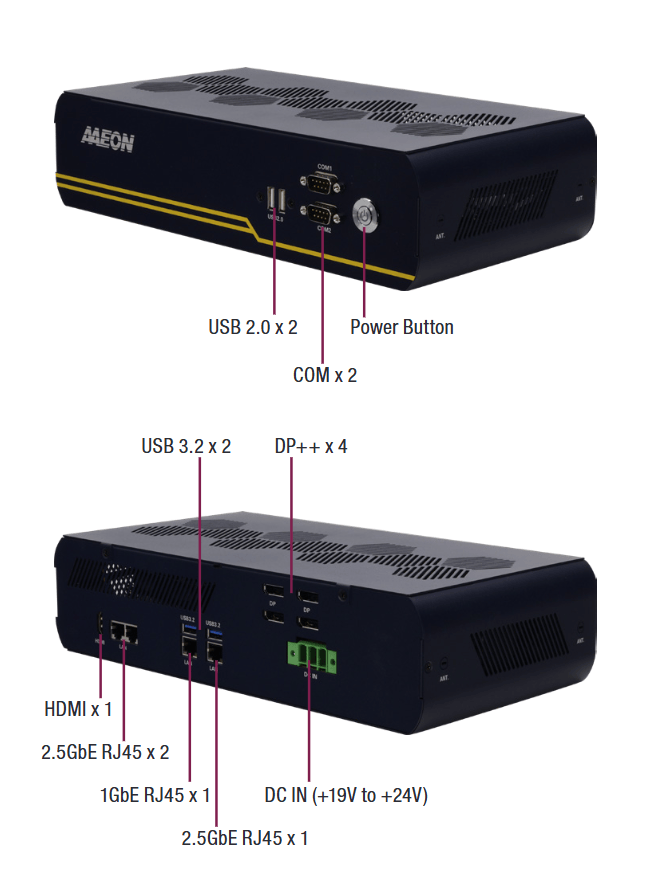

Connectivity features include four LAN ports, three of which support 2.5GbE speeds via the I226-LM controller and one at 1GbE with I219-LM. The system also provides two USB 3.2 Gen 2 ports and two COM ports with RS-232/422/485 functionality.

For display output, the system includes one HDMI 2.0 port capable of 3840 x 2160 resolution at 60Hz and four DP++ 1.4 outputs supported by the embedded GPU, each offering 1920 x 1080 resolution.

Expansion options include slots for M.2 2230 E-Key for Wi-Fi, M.2 3052 B-Key for 5G connectivity, and M.2 2280 M-Key for NVMe storage. These features enhance the system’s adaptability to various industrial applications requiring high-performance processing and connectivity.

Specifications listed for the MXM-ACMA-PUC:

• Memory/Storage:
  • 2x Dual Channel DDR5 4800 SODIMM
  • 2x SATA 6Gb/s
• Display/Audio:
  • 1x HDMI 2.0
  • 4x DP++
• Expansion:
  • M.2 2230 E-Key
  • M.2 3052 B-Key
  • M.2 2280 M-Key
  • MXM 3.1 Type A module
  • Nano SIM
• Connectivity:
  • 3x 2.5GbE RJ45
  • 1x GbE RJ45
• I/O Interfaces:
  • 2x COM ports
• USB:
  • 2x USB 3.2 Gen 2
  • 2x USB 2.0
• Other Features:
  • TPM 2.0
  • Power Button, Power LED
  • 4-Pin Smart fan
• OS:
  • Windows 10 (64-bit)
  • Ubuntu 24.04/kernel 6.8
• Operating Temperature:
  • -10°C ~ 50°C
• Power:
  • 19V to +24V DC (via 3-pin phoenix connector)
• Mechanical:
  • 310 x 160 x 75mm

Further information

AAEON has not disclosed pricing details for the MXM-ACMA-PUC. Additional information is available on the product’s official page.
